Basic Info.
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Semi Hanging
Arbor Configuration
Vertical Shaft
Transport Package
Steel Frame
Specification
3300mm L*1500mm W*1850mm H
Production Capacity
6000/Year
Product Description
4x4 60hp compact farm equipment tractor hot sale
LFT chassis tractor is a group tractor for general purpose. It can be used in plain, hill, mountain area, paddy field, orchard, grassland and meadow.It can accomplish various farm tools such as plow, harrow,
planter, harvester and trailer,etc.Following is TY chassis tractor details, please check.
LIFTOR Tractor Features:
1. LIFTOR series tractor is designed for multiple light works, such as farming, transportation etc.
2. Equipped with Chinese famous diesel engine, It has the advantage of high cost efficiency and fuel efficiency, low maintenance cost and good working performance.
3. Using central console and mature structure, the tractor is easy to control and maintain.
4. 8F+2R gearbox with easy operation and convenient maintenance;
5. Optional single/double action clutches for different needs and operation;
6. Optional Herringbone tires, paddy tires or other type of tires to meet your needs of working conditions.
7. Hydraulic power steering(4WD) makes it easy to control and reduce the labor strength of operator.
Tractor Parameter:
Model
| HX504
| HX604
|
Wheel Drive
| 4x4
| 4x4
|
Horse Power
| 50 HP
| 60 HP
|
Chassis Model
| Small Ningbo Chassis
|
Tractor With Roll Bar and Roof Dimension(LxWxH)
| 3550x1650x2360 mm
|
Tractor With Warm Wind Cabin Dimension(LxWxH)
| 3550x1650x2460 mm
|
Minimum Service Quality
| 1860 kgs
| 1940kgs
|
Front Wheel Tread
| 1300 mm
|
Rear Wheel Tread
| 1300 mm
|
Wheel Base
| 1850 mm
|
Minimum Ground Clearance
| 365 mm
|
Gear Shifts
| 8F + 2R
|
Tire Size
| 6.5-16/11.2-24 Inch
|
Engine Specification
|
Engine Brand
| Quanchai
| Xinchai
|
Emission Standard
| 3
|
Engine Model
| 4B5-50V32
| 4D27ZT32
|
Type
| Water Cooled Four Cylinders In-line Engine
|
Rated Power
| 36.8kw
| 44.2kw
|
Rated Revolution
| 2400 r/min
|
Start Way
| Electric Start
|
Gear Box
| (4+1)x2
|
Clutch
| Single Action
|
PTO Speed
| Double Speed, 6 Splines
|

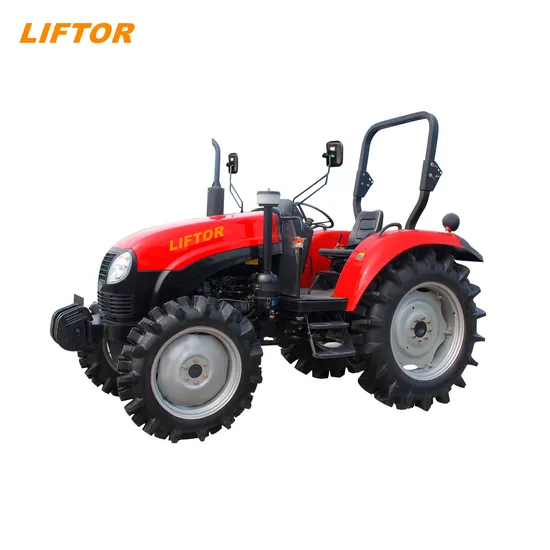

LIFTOR Tractor Pictures:
Optional Implements for Tractor :
About US:
"Liftor Enterprises" is a high-tech enterprise professionally specialized in R&D, production, sales, service of electric storage,intelligent industrial system, agriculatural tractor, lifting machine and wheel loader. It is located in Nanjing, Jiangsu Province with advanced forklift manufacturer technology, processing equipment and perfect product testing center.Our company is the China Automobile Industry Association member unit. We won the honorary title such as "Outstanding Enterprise of Quality Management, Credibility and Service AAA level", "National Enterprise of Good Creditworthiness", "National Quality Management Advanced Enterprise" etc. The company has already passed the safety production standardization and the quality authentication of ISO9001:2008 and European Union CE certification, fit-out national patent certificate.Our main equipment are agriculatural tractor, lifting machine, wheel loader and forklift. It is widely used in various places of modern logistics.
FAQ:
1. Manufacturer or Trading Company?We are leading tractor manufacturer for 20 years, and specialize in 12-240Hp tractors in China.
2. MOQ: Mini tractor: 8 units; Middle tractor(25-40hp): 2 units; Above 50hp: 1 unit
3. Spare Parts: Free toolbox and easy damaged parts.
4. Shippment: We can help you arrange shippment.
5. Delivery Time: Usually 25 days. In peak season,30-40 days
6. Warranty Time: Complete service system, 12 months since arrival of destination port
7. Payment Terms: We accept 30%T/T in advance, and 70% T/T before delivery
8. Tractor Options: Can be equipped with ROPS, Canopy, Cabin, AC Cabin, Air Brakes, Hydraulic Valve Out, Paddy Tire or as per your requirements.
9. Tractor Logo: We have our own logo. And we also can put your logo for free.
10. Package and Loading: (1).complete tractor package: 2 units/20GP, 4 units/40HQ;(2).Iron Frame Package: 8 units/20GP, 16 units/40HQ
11. Tractor Implements: Rotary tiller, disc plow, furrow plow, cultivator, front end Loader, backhoe, Mower, Trailer, Snow Blower or as per your requirements.
12. Part supply: Complete Parts Workshop, and can supply all parts
>>
