Vertical Drilling Tapping Machine ZS-40/ZS-40P

Product Description

Product Description

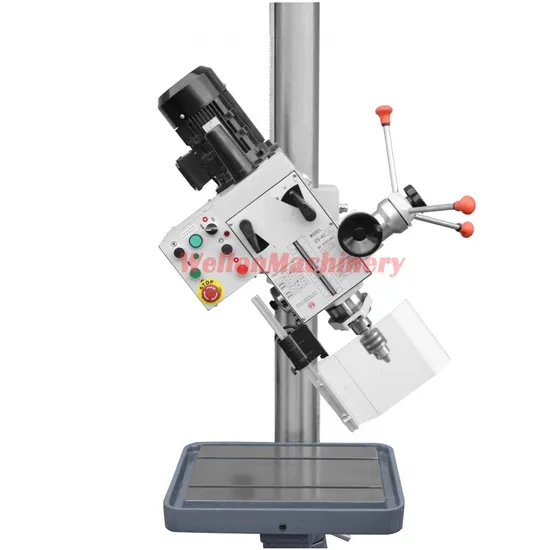

Vertical Drilling Tapping Machine ZS-40 / ZS-40P Detailed Photos
Product Parameters

Performence Features:
The machine adopt gear driving and the driving moment is strong.
The machine has the six series speed variable feature, which can be widely fit for processing to kinds
of common hard& soft material.
The head can rotated 360 degree and can tilted ±45 degree,reliable and easy job can be done.
The motor drive by the gear, which overcome the short coming of the belt skid.
According to the customer demand the machine can drill, enlarge, ream and tap the multi-holes by the
multi-spindles.
ZS40HS without coolant system, ZS40PS with coolant system.
Technical parameter:

Model		ZS-40/ZS-40P
Max. Drilling capacity	mm	(Cast iron) 40 (Steel)32
Max. Tapping capacity	mm	(Cast iron) M32 (Steel)M24
Diameter of column	mm	115
Spindle travel	mm	120
Distance from spindle axis to column	mm	272.5
Max. Distance spindle nose to base	mm	800
Spindle taper		MT4
Spindle speeds	r/min	95 170 280 540 960 1600
Spindle speeds series		6
Dimension of base	mm	635*460/ 690*520
Motor	w	Single 750 Triple1100
G.W/N.W	kg	290/250 / 310/270
Packing dimension	cm	75x73x146

Standard accessories:
Drill chuck
Reduction sleeve and arbor
Draw bar
Wrench
Operate manual
Optional accessories:
Machine vice
Spindle guard
Coolant system
Multi-spindles
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
