Weather Resistance ISO18752 High Pulse Constant Pressure Type Hydraulic Rubber Hose

Product Description

Weather Resistance ISO18752 High Pulse Constant Pressure Type Hydraulic Rubber Hose
Product Description

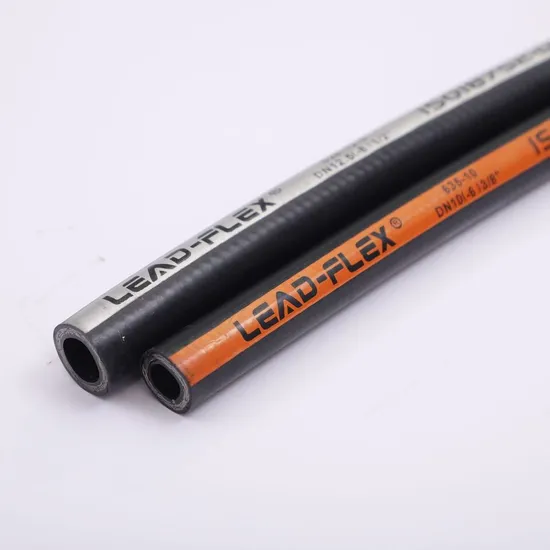

ISO18752 High Pulse Constant Pressure Type Hydraulic Hose
Structure: The hose consists of an inner rubber layer, a steel wire braided or spiral reinforcement layer, and an outer rubber layer.
Applications: Suitable for conveying hydraulic fluids such as glycol, mineral oil lubrication, emulsion, hydrocarbons, etc. can not
be used for conveying phosphate ester groups.
Working temperature: From -40ºC up to +120ºC, the conveying medium temperature can be 0ºC to 70ºC if it is water.Product Parameters

LEAD-FLEX ISO18752

Product Series	Optionaltype				Inner Diameter	Outer Diameter	W.P	B.P	Min.B.R
					Max	Max	Mpa	Mm	Mm
642-6	AC	BC	CC	DC	6.4	11.3	42	168	50
642-8	AC	BC	CC	DC	7.9	12.7	42	168	55
642-10			CC	DC	9.5	17.8	42	168	150
642-13			CC	DC	12.7	20.6	42	168	180
642-16			CC	DC	15.9	24.2	42	168	220
642-19			CC	DC	19	28.3	42	168	280
642-25			CC	DC	25.4	35.5	42	168	400
642-32			CC	DC	31.8	47.6	42	168	480
642-38			CC	DC	38.1	54.4	42	168	560
642-51			CC	DC	50.8	67.8	42	168	630

Detailed Photos
Strong Structure
This hose consists of an inner tube of oil synthetic rubber four layers of spiral wire reinforcement, and an oil and weather-resistant rubber cover, that has excellent weather resistance, fire resistance, corrosion resistance, and aging resistance.Excellent performance
Excellent pressure resistance and good chemical compatibility make our hose have excellent performance in high-pressure situations.Multiple Types
There are different inner diameters, outer layers, and lengths in terms of size. You can also choose a different product to match your equipment.Applications
Our hoses are suitable for hydraulic fluids based on mineral and synthetic oils, water-based emulsions, and water-based glycol solvents. and lubricants based on vegetable and mineral oils.Private Design
We can provide OEM/ODM to print your Logo on the hose.
