Basic Info.
Cutter Material
High-Speed Steel
Name
Food Grade Stainless Steel Colloid Mill for Sauce
Material
Stainless Steel 304/316
Flow /Hour
50L/ H to 5000L / H
Function
Grind, Emulsify, Refine Liquid
Application
Milk, Juice, Soybean Milk, Penut Paste, Jam
Colloid Mill Power
1.1kw to 15kw
Spare Part
Mechanical Seal
Shape
Vertical Type and Horizontal Type
Food Grade Colloid Mill
Liquid, Liquid and Powder Mill
Working Life
More Than 10 Years
Principle
Cylinder Culling
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
<100MPA
Tongs′ Features
Adjustable Tongs
After-sales Service
Online Service
Transport Package
Plywood Box
Product Description

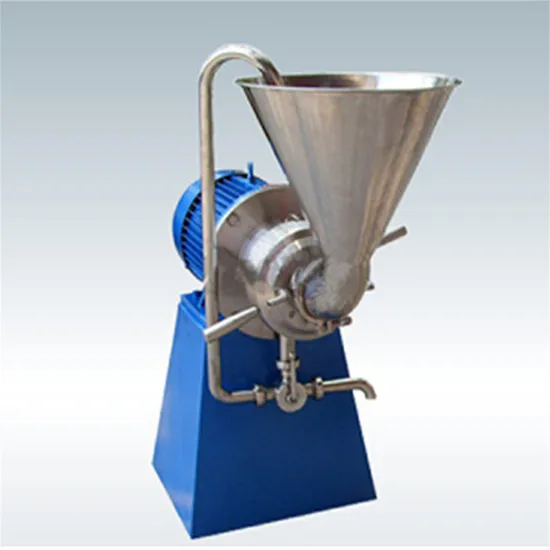

Food Grade Stainless Steel Colloid Mill For Sauce Juice Paste Curry
JM series colloid mill is new model equipment is that wet style particle processes, Be put into use emulsifying or homogeneity in all kinds of milk shape liquid, smash, widely use with food(Jam, juice, soymilk, dairy products, drink etc. )pharmacy (of all kinds, nutrient solution, Chinese patent drug, cream) chemical industry (toothpaste, cosmetics, detergent)Agents such as the grease, petroleum catalysator chemical industry pigment, dyestuff, lube) And industry such as milk selections, emulsification dynamite produces usage.
Main Application :
This machine is applied for wet material super fine crushing in trades such as pharmaceutical, foodstuff, chemical and others trades, suitable for emulsifying, mixing and crushing all kinds of semi-moist or emulsions materials. Its main technique parameters have reached the international advanced standard.
Working principle :
With its flexible and fixed mills with different geometric shapes rotating at high speed making the relative motion, this machine crushes materials by cutting, pulverizing, the pulverizing fineness can be adjusted by changing the rip between the upper and down mills. It can well reach the required effect of super-fine pulverizing fineness can be adjusted by changing the rip between the upper and down mills. It can well reach the required effect of supper-fine pulverizing at once. Featured with compact conformation, steady run, low noise, corrosion resistant, easy clean, convenient maintain etc, it is the most deal equipment for wet pulverizing in our nation .ced standard.
Range of Application :
Foodstuff industry:aloe, flower dust wall-broken, pineapple, gingili, ice cream, jam, syrup, soy, bean, grass nut milk, dairy produce, malted milk, essence, drinks, emulsified chicken bones, emulsified pigskin and other animal skins.
Chemical industry:
oil paint, dye, coloring matter, dope, lubrication, lubrication grease, diesel oil, petrol activator, emulsified bitumen, adhesive, scour, plastic, glass steel etc.
Life chemistry :
toothpaste, scour, shampoo, shoeshine, cosmetic, bath extractive, soap, sweet-smelling grease etc.
Pharmaceutical industry:
syrups, nutrition fluid, Chinese patent medicine, poultice, biology produce, fish liver oil, pollen, queen bee plasma, bacterin, ointments, liquid tonic taken orally, spasmolytic, pancreas and enzyme preparation, emulsion, herd drug etc.
Construction industry:
dopes including inside and outside walls dope, antisepsis waterproof dope, porcelain dope, colorful dope, pottery and porcelain enamel etc.
Other industry:
plastic industry, weave industry, paper making industry, biology chemical, environmental protection and economization on energy, coal floatation, universities, scientific research institutes etc.
| TYPE | JMF80 | JMF100 | JMF120 | JMF140 |
| Emulsification degree(μm) | 2 | 2 | 2 | 2 |
| Adjustment range(mm) | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 |
| Flux (KGS/H) | 300-1000 | 500-2000 | 700-3000 | 1000-4000 |
MOTOR o r | Power (KW) | 3 | 5.5 | 11 | 7.5 |
| Voltage(V) | 380 | 380 | 380 | 380 |
| Revolve speed (r/min) | 1700-3500 | 1700-3500 | 1700-3500 | 2900 |
Inlet diameter (inch) | 2″ | 2 1/2″ | 2 1/2″ | 2 1/2″ |
Outlet diameter (inch) | 1 1/2″ | 1 1/2″ | 1 1/2″ | 1 1/2″ |
Cold water pipe diameter (inch) | 1/8″ | 1/4″ | 1/4″ | 1/4″ |
| DIMENSION | length (mm) | 830 | 880 | 880 | 880 |
Width (mm) | 410 | 460 | 460 | 460 |
| Height(mm) | 860 | 1000 | 1000 | 1000 |
| Weight (Kg) | 130 | 200 | 275 | 320 |
