Advanced Hydraulic Operating Table for Enhanced Surgical Precision

Product Description

Luxury Electro-Hydraulic Operating Table Ultra-Low Product Paramenters
Introduction

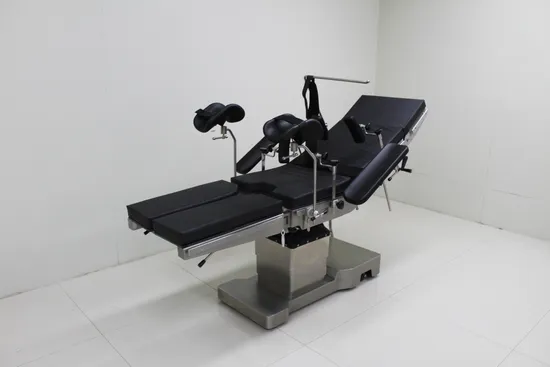

This model is a comprehensive operating bed, suitable for thoracic, abdominal surgery, obstetrics and gynecology, ent, urology, anorectal and orthopedics and other types of surgery. The whole machine adopts the advanced modular design concept to realize the combination of a variety of functions, but also beautiful and generous
The five independent parts (head, back, waist, hip, feet) create professional positioning in line with the physiological structure of the human body. At the same time, the operability of the operating bed can be accurately and quickly positioned in a wide range of positions such as knee and elbow flexion, lateral position, lithotomy position, seat position, supine position, etc., which greatly saves the operation time.
The lift­ing cover cylinder, base cover cylinder, guide rail and accessories of the operating table are made of 304 stainless steel, which is easy to clean and disinfect.
The bed surface is made of Commet material (carbon fiber material is optional), and the translation range of up to 300mm makes the X-ray completely blind spot free.
Mattress with advanced memory sponge pad, with antistatic, decompression effect, patients for a long time operation can prevent bedsores. The operating table uses an advanced motor control system, which has good stability, no frus­tration, quiet and smooth. Investment casting technology is used in many parts such as the column and the bed frame, which improves the bearing capacity of the operating bed and ensures the safety of the operation.
There are two adjustable operating bed position modes (Re­mote control + Adjustable position remote control mode on the operating bed) The operating table is equipped with high-performance rechargeable batteries, which can meet the needs of more than 30 surgeries with a single charge, and has intelligent charging and insufficient power warning function
Technical data:

Table length and width	2250mm x 550mm
Table top and bottom	720mm x 1050mm
Table top tilt maximum Angle	Forward tilt ≥25°Backward tilt ≥25°
Table top tilt maximum Angle	Left tilt ≥15' Right tilt ≥ 15°
Leg plate adjustment range	Upper fold ≥ 15° Lower fold ≥ 90° Outer fold ≥ 90°	Detachable
Backplane adjustment range	Top fold ≥ 75° Bottom fold ≥ 20°
Head plate adjustment range	Top fold ≥ 35° Bottom fold ≥ 90°	Detachable
Lifting distance of waist bridge	≥110mm
Translation	Translation ≥300mm
