Tablets Maker Compression Pharmaceutical Rotary Tablet Press Machine for Pills Making

Product Description

Product Description

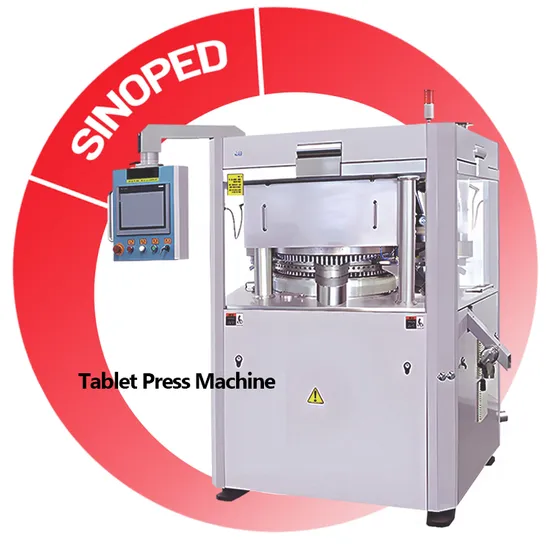

GZPseries 100kn high speed rotatory pharma tablet press making machine.
The main motor of the tablet press drives the turntable to rotate through the AC variable frequency stepless governor and the worm
deceleration.The rotation of the turntable causes the upper and lower punch to move up and down relative under the action of the
guide rail.The granules or powders are pressed into tablets by filling, prepressing, main pressing and tablet discharging.In the
whole process of pressing the tablet, the control system through the pressure signal detection, transmission, calculation,
processing and so on to implement the automatic control of the weight of the tablet, the waste piece automatic reject and fault
display function.
Features: Synthetic starch granules: the granules are uniform, not moist, and the proportion of fine powder (more than 60 mesh) in the granules is not more than one third.
Chinese medicine granules: full extract, half extract and raw powder granules are required not to be wet and have a certain fluidity.Hardness, uniformity requirements are not strict.
Particle size range: 12-60 mesh, with compressibility and fluidity.
It can also be applied to dry powder tablet.
Not suitable for semi-solid, wet molecules and particles of very small (> 100 mesh) powder pressing. 2.2 Molding time and maximum pressure Molding time ≥20ms, Molding maximum pressure: ≤100KN; 2.3 Equipment storage Should be in the relative humidity is not more than 86%, the room temperature is not higher than 35ºC, and has the shelter rainproof and the ventilation good place.

Model		GZPK-26	GZPK-32	GZPK-40
No. of station		26	32	40
Capacity(tablets/h)	Max.	160000	210000	260000
	Max.	30000	30000	30000
Rotation speed (rpm)	Max.	102	105	105
	Max.	11rps/min	11rps/min	11rps/min
Max.tablet diameter		Ф25	Ф16	Ф13
Main pressure		100KN	80KN	80KN
Pre-pressure		20KN	20KN	20KN
Max. filling depth		20mm	16mm	16mm
Dia. of die (mm)		38.1	30.16	24.01
Length of punch		133.6mm	133.6mm	133.6mm
Main motor power		11KW	7.5KW	7.5KW
Dimension		800(+440)*890(+440)* 1945mm	800(+440)*890(+440)* 1945mm	800(+440)*890(+440)* 1945mm
Net weight (KGS)		1400	1400	1400

Every factory machine is precisely debugged by engineers to ensure that it is ready for use after delivery

Model	GZPK-45	GZPK-55	GZPK-75
No. of station	45	55	75
Maximum yield	405000	495000	675000
Maximum speed	75rps/min	75rps/min	75rps/min
Maximum die diameter	25	16	13
Maximum abnormal long axis	25	19	16
Main pressure	100KN	100KN	100KN
Pre-pressure	20KN	20KN	20KN
Maximum filling depth	20	20	20
Tablet thickness range	0.5-8	0.5-8	0.5-8
Injection depth of upper punch	2-6	2-6	2-6
Main motor power	11KW	11KW	11KW
Dimension(mm)	1200X950X1850	1200X950X1850	1200X950X1850
weight (KGS)	3980	3980	3980

We can provide a series of detailed materials for mask production pictures, production process videos, drawings, etc.
