Injection Moulding Machine (L-BW120) for Making Any Plastic Products

Product Description

1.Specification of blowing machine
Injection section: Double-leaders supporting, balanced double cyinders injection. The injection screw is directly driven by a low speedhigh torque hydraulic motor. And it can be got stepless speed.
Hydraulic unit: This unit composed of imported advanced hydraulic components. System pressure is controlled by proprotional valve. In addition, a quick mold clamping device and fast-respond excellent control.
Electronic equipments control: It is adopted special computer of plastic-injection machine and advanced CPU controller.
Clamping unit: Optimum designed double-toggle five-joint clamping machinery has functions such as large open stroke, efficient and reliable movement. Multieject Functions with pressure, speed, position and delay time adjustable are suitable for various molding conditions. In addition, we can deploy multiservo moulding device according to the requirement of the user.
Others: The machine also equip High Technical Logical Valve, Variable Displacement Pump and Automatic Oil-supplying device.

Type items	L-BW120
Screw diameter (mm)	42
Shot size (cubic centimeter)	240
Injection rate (g/s)	98
Screw stroke(mm)	200
Screw L/D ratio (L/D)	21
Plasticizing Capacity (g/s)	21
Clamping tonnage (KN)	1680
Opening stroke (mm)	320
Mould height (mm)	150-370
Space between Tie-bars (mm)	370*350
Ejector stroke (mm)	90
Ejector tonnage (KN)	25
Heat power (KW)	7.1
Pump motor power (KW)	11
Machine dimension (m)	4.0*1.2*1.7
Machine weight (ton)	3.5
Oil tank capacity (L)	250

More size:
2. Certificate of machine

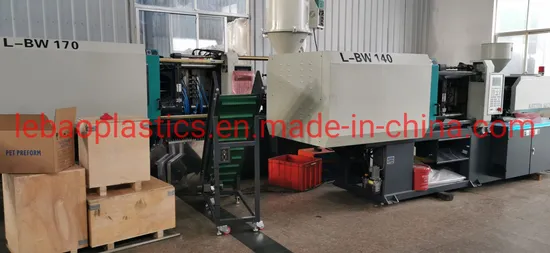

3. Factory and Workshop
4. Exhibition
5.Customer visiting
FAQ: 1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Taizhou City, China. You can fly to Ningbo airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: How can I get some samples?
A: We are honored to offer you samples.
4. Q: How does your factory do regarding quality control?
A: "Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE authentication.
Why Choose us? About us:
Zhejiang Lebao Plastics Equipment Factory, established in 1988 and registered in 1993, is a professional manufacturer and exporter of PET preforms, plastic blow molding machines, PET bottle and injection molds. It is located in Huangyan of Zhejiang Province, a city on the East China Sea well-known as "the Town of Plastic Mold".
Boasting professional technicians with rich practical experience in macromolecule field, we have been devoting ourselvers to the development of 3&5 gallon water preforms and small-sized preforms, PMMA lamp covers etc. We mainly engage in the injection, stretching, blowing (stretch technology) production of plastic products which have extensive applications in foodstuff and drink packaging, pesticide packaging, outdoor lighting as well as other daily commodities.
Over the past years, we have been entitled the "contract-stressing and promise-keeping enterprise" and our products have been awarded the "excellent scientific and technological products of Zhejiang Province".
We are located in Huangyan, the renowned land of orange in China. Since China's reform and opening to the outside world, Huangyan has developed into a famous town of mould and plastic industry.
Our people will take the opportunity to follow the business philosophy of "science and technology-based, market-oriented, take the quality as important as our own lives and the customer's benefits top everything", trail the international advanced technology and March toward the goal of mass production, internationalization and diversification.
And we warmly welcome friends from all over the world to visit our factories for business.
