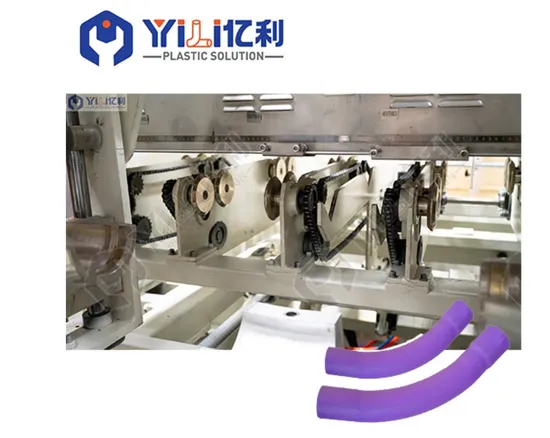

PVC Pipe Bending Machine for All Size PVC Pipes

Product Description

Product Introduction
Yili owns the most sophisticated team and top class R&D experts from the industry. Our PVC duct and PVC pipe Bending machines are used to produce PVC pipe or PVC duct bends with socket. Thanks to technical support from our customers in Italy and Germany, we can manufacture the machines with different requirements on basis of their many years' experience. Our bending machines become the most affordable and economical bending machine in the world. Our bending machines already have CE and UKCA certificate.
Technical Specification

Model	Pipe OD (mm)	Bending angle	Capacity (pcs/hr)
YL-63	Φ20-63	11.25/22.5/45/90 degrees or custom made	480
YL-110	Φ50-110	11.25/22.5/45/90 degrees or custom made	80
YL-160	Φ75-160	11.25/22.5/45/90 degrees or custom made	80
YL-250	Φ90-250	11.25/22.5/45/90 degrees or custom made	72

Product Features

Wide range of machines for bending and socketing of PVC pipes, diameter min. 20mm - max. 250mm; Variable angle, radius and length; machine and forming molds are designed on basis of bending sizes; Production capacity (circle time) same as European machines; Energy saving 60% compare with manual bending machine; Hydraulic parts use Yuken brand made in Japan; Ceramic heaters made in Ireland afford temperature up to 700ºC; Program is improved through 5 years' experience. Use Siemens touch screen, with remote control function. Machine advantages
Heaters made in Ireland, can heat up to 700ºC with insulated SUS304 cover. Two heating steps ensure efficient and stable heating for the pipes. The height of the heating device can be adjusted, so that it can be applied to PVC pipes of different diameters.
This automatic pipe bending machine has a compact structure, integrates pipeline transportation, heating, belling, pipe bending and pipe outlet together with full automation. Compared with manual machines, the production efficiency of this machine is increased by 3-5 times.
At the front bending, it is installed high-quality belling mold and clamping tool with 45# nickel-phosphorus treatment, and imported photoelectric Autonics detection, to ensure accurate belling length and beautiful appearance of the belling.
A scale is installed for adjusting belling and bending mold base, which ensure that the tolorance of each product is within 1 mm.
After the automatic discharge device receives the signal, it will automatically lift , take the product and send out. No need to use labors, efficient and safe.
Advanced hydraulic system adopts Japanese YUKEN brand oil pump and hydraulic solenoid valve, high-quality energy storage system to ensure energy saving and noise reduction.
Sample bending pipes

---
