Die cutting machine to cut the mask nose sponge

Product Description

Product Description

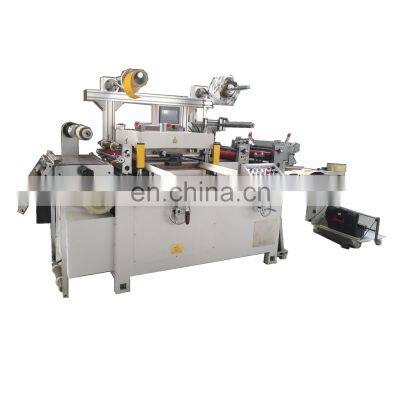

Product Overview flat-bed die cutting machine cutting machine to cut the mask nose sponge.This is a kind of flat-bed die cutting machine with high precision, whose material-going is controlled by servo motor. The threephotoelectric eyes do the web guiding job. Die cutting, laminating , waste rewinding an sheeter ( or rewinding) can be finished inone process. The machine is applicable to die cut adhesive paper label, Dacron film label and laser anti-false label. It is anideal auxiliary for flexo printer, silk-screen printer, rotogravure printer and so on.FEATURES AT A GLANCECOMPACT DIMENSIONSCUTTING STABLESAFETY FRAMESIMPLE CONTROLSEASY MAINTENANCEVERSATILITYDIE CUTTING PRECISE cutting machine to cut the mask nose sponge.WITH LAMINATING FUNCTION UNWINDINGMAIN DIE CUTTING PARTREWINDING PARTPRODUCT SPECIFICATIONS Model DP-320BII DP-420BII Cutting speed 20-200 (t/m) 20-200 (t/m) Max unwinding diamete 450mm 450mm Max web width 320mm 420mm Max mould cutting area 320x300mm 420x420mm Orientation accuracy ±0.10mm ±0.10mm Motor power 3kw 4kw Power voltage 220v±10% 380v±10% Machine weight 2200kg 2800kg Measurement 2600x950x1400mm 2600x1050x1800mmPRODUCT CONFIGURATIONTOUCH SCREEN OPERATIONImported SERVO DRIVER AND FREQUENCY CONVERTERJapan MITSUBISHI motor SERVO MOTORPeeling material part with motor back side view Front view of peeling partoperation board main die cutting station

---
