4pole UPS Automatic Transfer Switch Photovolt Solar Power to Grid Power

Negotiable 10 Pieces (MOQ)

Basic Info.

Model NO.
JKQ1-125A PV
Operation
Electric
Certification
CCC, CE, ISO9001
Type
Integrated automatic transfer switch
Poles
4P
Output type
Dual
Respond Time
0.008second
Application Range
Power Plant,Hospital
Shell Protection Grade
IP55
Shell Material
Steel Plate
Current
125A
Pole
Rstn
Mechanical Life
8000
Class
Circuit Breaker
Rated Current
16-100A
Electric Life
3000
Operate
Asco Transfer Switch Manual
ATS Wiring Diagram
Diesel Generator
Range
UPS
Transport Package
Paper /Wooden Pallet
Specification
RoHS package
Trademark
JUNKE
Origin
Zhejiang Yueqing
HS Code
85385000
Production Capacity
15000PCS

Product Description

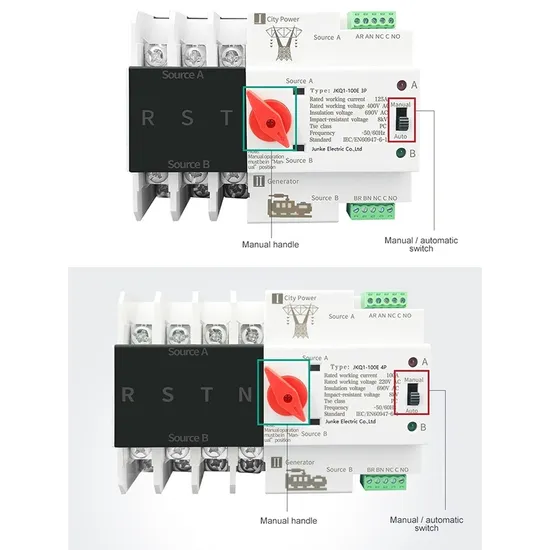

4p 63A Mini Circuit Breaker Type Automatic Transfer Switch for Generator power inverters
Dual power automatic transfer switch vantage:
Dual power automatic transfer switch Technical Date:
Rated Working Current 10A 16A 20A 25A 32A 40A 50A 63A
Rated Working Voltage AC220V 380V 415V
Controling Voltage 220VAC
Rated Short Circuit Breaking Capacity 3KA 4.5KA 6KA
Rated Insulation Voltage AC500V
Transfer Time ≤1.2S
Frequency 50/60HZ
ATS Level CB Class
Standard GB/T14048.11
