API 6D Industrial Flange or Wafer Cast Iron or Forged Stainless Steel Ball or Swing Check Valve

US$48.00 1 Piece (MOQ)

Basic Info.

Model NO.

H44H

Structure

Swing

Function

Ddcv Double Lobe, Nrvr Silence, Sfcv Rubber Lobe, Nrvz Silence

Sealing Form

Seat Ring

Flow Direction

Unidirection

Standard

ANSI

Application

Industrial Usage, Water Industrial Usage, Household Usage

Designed & Manufactured

Bs1868/API 6D

Temperature & Pressure Rating

Asme B16.34

Face to Face Dimension

Asme B16.10

Painting

Vatac Std.

End Connection

Asme B16.5

Inspection & Test

API 598/ISO 5208

Fire Safe

N.a

Special Requirement

Tba

Transport Package

Sea Worthy

Specification

API, ANSI, ASME, DIN, JIS, GB etc.

Trademark

Vatac

Origin

China

HS Code

84818010

Production Capacity

6000Ton per Year

Product Description

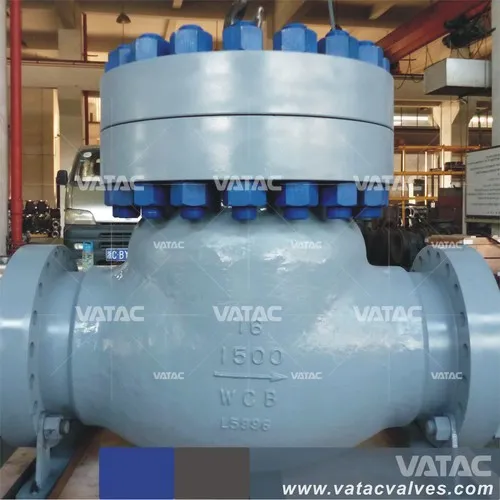

BS1868/API 6D Flange or Wafer Cast Stainless Steel Swing Check Valve
Features & Specifications
Available in Full Port Or Reduced Bore
Design & Manufacture: API6D, ANSI B16.34, BS1868, BS 5153
Bolted Bonnet, Swing Type Disc, Threaded or Welded Seat Ring of Check Valve
Back-seating, Renewable Seat Ring
Size Range of Check Valve: 2" to 48"N. B.
Pressure Ratings: ANSI 150, 300, 600, 900
End Connections: Flanged, Buttweld, Socket Weld, Hub Connectors, Compact Flange or other proprietary connections.
Materials of Check Valve: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent, Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Various trim materials available to suit service conditions
Actuations: Manual
To MR 0175 and MR 103 Upon Request

DESGN & MFT.	BS1868	ENDS CONNECTION	FLG. RF
PRE-TEP. RATING	ANSI B16.34	INSPECT & TEST	API 598
F-F DIMENSION	ANSI B16.10	END CONNECTION	ANSI B16.5
MARKING	MSS SP-25	FIRE SAFE DESIGN	--
PAITING	TBA	SPE. REQUIREMENTS	N.A

Final Inspection
Shipment
