Cold Feed Sealing Strip Making Machine Rubber Extrusion Continuous Line

Product Description

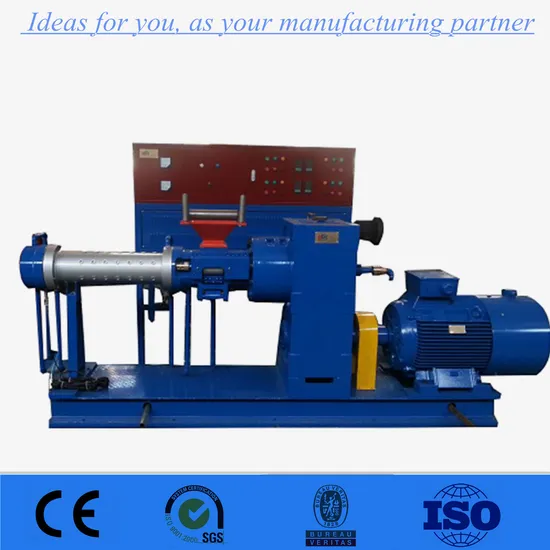

Cold Feed Sealing Strip Making Machine Rubber Extrusion Microwave Continous Vulcanizing Line

EPDM rubber seals production line including cold feed extruder, automatic thermostat vulcanization box, drive tractor, cooling tank, rollers tractor, and meter counting device, duplex winding machine and other equipments.

Technical Parameters	XJP-75X20D	XJP-90X20D	XJP-120X20D	XJP-150X20D
Screw Diameter(mm)	75	90	120	150
L : D	20:1	20:1	20:1	20:1
Screw Rotate Speed (r/min)	5-65	5-55	5-55	5-55
Max. Extruding Capacity (kg/h)	120	320	600	800
Main Motor Power(kw)	37	55	110	150
Speed Adjustment Mode	variable frequency speed regulation
Weight (kg)	1700	3200	5200

Structural Features:
1. Automatic thermostat circulating vulcanizing box is the vulcanization device of rubber seals. Appearance requirements: Smooth and tidy.
(1) This machine is used to electricity heating tube automatic thermostat which temperature control accuracy of +/-2° C, the temperature range at room temperature to 260 degrees.
(2) Effective length of vulcanization box is 24m, centrifugal fan circulation. It liner with 120stainless steel and the middle insulating layer is fully filled with aluminum silicate cotton.
(3) Vulcanization box is divided into three zones, each zone with trimmer potentiometer which adjusts the speed of the three zones of vulcanizing box to equilibrium; In the middle of each zone with the ventilating device, and removing the emissions generated by the vulcanization process in time in order to ensure the smoothness of the rubber products.
2. The entire production line speed is adjustable to match with speed of the extruder.
Company Introduction:
1. 20 years on rubber machine manufacturing and exporting.
2. Delivery within 35 days.
3. Safety wood or plywood crates packing.
4. Full transportation insurance.
5. Sell to 126 countries on 6 continents.
6. One-stop rubber machinery solution in Shun Cheong.

Packaging
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
In addition, our machineries have exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries. Welcome to Visit our Factory!

WELCOME TO VISIT OUR FACTORY! Contact Us Victor Wang Wang

---
