USB2.0 Capture Card Video Audio Capture Card

Product Description

Audio Video Capture Adapter VHS USB 2.0 For Capture Device DVD DVR TV Capture Card Converter Support Win10 For MAC IOS DriveBlue Wholesale price Excluding freight
The first step: Install the capture card driverNote: Please be sure to access the USB card. After the system found the hardware. Click Cancel. .Then install the program. . After installation, remember to restart the computer. , Otherwise prone to poor installation problem.The random CD-ROM into the computer drive, the system automatically disc content:Install Driver --------------- Install the driverInstall Video Studio ----------- Install video softwareInstall Driectx 9Browse CD ------------------- Browse the disc contentsExitChoose the first one: Install the driver. Note: The customer also installs the DRIVER and SETUP packages in the optional CD-ROM.After installation, connect the USB card on the computer interface, the computer will automatically find the program installed on the computer for a period of time.Note: When connecting to the AV receiver cable, you must connect the video cable to the video cable, the audio cable to the audio cable, and the wired camera. Capture card yellow is the video input. Red and white are audio inputs.Select the second: video software installation, follow the prompts to enter the surface of the disc printed on the number of letters plus the serial number (the serial number is the only) is not inside the disc file. On the disc surface
Features Features Standard USB2.0 interface, the latest technology USB AUDIO, stereo input and output, the input interface with AV and S-terminal, you can watch on your desktop or laptop TV, VCR, VCD, DVD, video cameras and other equipment output video images
Detailed specifications support USB2.0, no need to open the chassis, hot-swappable, support for laptopsadjust the screen size, the highest resolution up to 720 × 576, 24-bit true colorthe latest technology USB AUDIO, stereo input and outputimage brightness, contrast, saturation, color can be customizedCan capture high-quality dynamic and static images, smooth and uninterrupted collection of imagesinput interface with AV and S terminal, you can watch video, VCD, DVD, video camera and other equipment on desktop or laptop computerSupport MPEG1 / 2 and other real-time compression formats, easy to make VCD / SVCD / DVDcompatible with WINDOW2000 / XP, compatible with Direct8.1, 9.0
system requirement A free USB2.0 port2.Windows 2000 / XP3.Intel Pentium III 800 above4.600MB of hard disk space for program installation, it is recommended that more than 4GB of hard disk space for software to store video files5. Memory: 256 above6. Screen display resolution is at least 1024X768Microsoft DirectX 9.0 (Windows 2000 recommended installation)Microsoft Media Player 7.1 (Windows 2000 recommended installation)

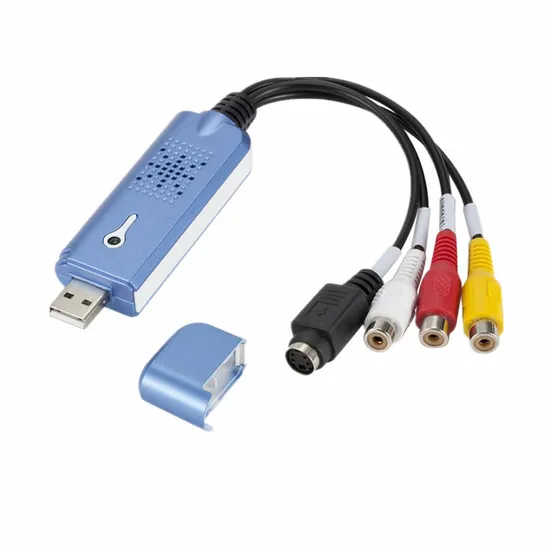

product description USB 1-channel capture card design using the elegant black, small size, only U disk size, easy to carry. Through the input digital TV set-top box signal can easily record digital TV on the computer, built-in high-quality stereo Audio ADC without sound card recording, support for 10bit video decoding and 16bit audio decoding. Watch TV images clear and smooth, colorful.
application Security Surveillance, Videophone, Videoconferencing, Card Making, Computer Imaging, Fingerprint Analysis, Video Mail, Bank Seal, Medical Analysis
Package Contents USB video capture cardInstructionsInstallation CD (including drivers
Features U disk size, AV / SV audio and video capture, easy to carry;Through digital TV set-top box can easily see and record digital programs in the computer;support for Windows XP SP2 / Vista;support NTSC / PAL format;Support 10bit video decoding and 16bit audio decoding;built-in high-quality stereo Audio ADC without sound card recording;audience noise reduction, anti-staggered display, complete elimination of glitches;free to zoom image window (4: 3 or 16: 9) or full screen to watch TV programs;3.0 compression engine, compressible AVI, MPEG-1,2,4 format, easy to make VCD, DVD;provide video playback, picture browsing function;support BMP, JPG image format image capture function;video brightness, contrast, saturation, gray adjustable;ultra-small size (92X30X14mm) weighs about 30 grams;
System Requirements
Intel Pentium IV 1.8G processor or equivalent
minimum 128MB memory or larger
Minimum 500MB free disk space or more
USB2.0 interface
Windows XP Sp2 / Vista
Optical drive

---
