Basic Info.
Automatic Grade
Automatic
After-sales Service
Oline
Name
Low-Speed Needle Punching Machine
Width of Products
2.35-2.8m
Thickness of Products
5-15mm
Needling Frequency
100~650times/Min
Number of Needle
5000PCS(First)/6000PCS(Second)
Cylinder of Caring Machine
450mm
Speed of Carding Machine Cylinder
1100r/Min
Spare
3sets Motor/1set Fan/1set Control Cabinet/Chute Fe
Transport Package
According to International Standards
Production Capacity
300kg/H-400kg/H
Product Description

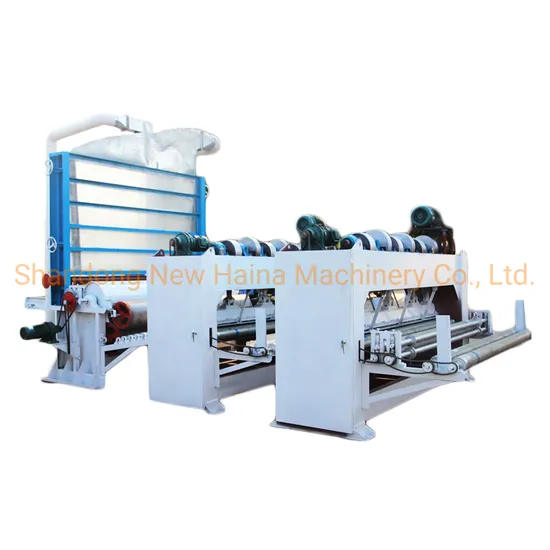

Nonwoven Fabric Machinery Non-Woven Making Machine Nonwoven Needle Punch Loom Rib Needle Loom with Cotton Rags Product description:
Needle -punching machine can convert the fleeciness textile fiber into Acupuncture cotton, high density and high-spring such as thermal insulation blanket, Greenhouse quilt raw materials, Mattresses, sofa, cushions, Car mats, Chemical products and Non-woven fabrics for engineering, etc, through Carding process, Spreading process, Acpcucture process, strengthening process.
The needle punching machine unit consists of an opening machine, carding machine with chute feeder, needle machine with winder, and cutter. The necessary parts include a Fan motor, Speed reducers, and electric control cabinet. We can match machinery for you according to customer's requirement.
Advantage :
1. the width can be adjusted.
2. speed can be adjusted.
3. thickness can be adjusted.
4. the strong degree can be adjusted.
Width of products
| 2.3~2.5m
|
Thickness of products
| 5~15mm
|
Output
| 7~8m/min 400g/m2
|
Needling Frequency
| 100~650times/min
|
Needling Travel
| 35~65mm
|
Number of Needle
| 5000pcs(first)/6000pcs(second)
|
Power
| 26.5KW
|
Cylinder of caring machine
| 450mm
|
Speed of carding machine cylinder
| 1100r/min
|
size of one machine(mm)
| 2600*700*1220/2600*700*2000
|
Covering area
| 10*4*3.5m
|
Weight
| about 5600kg
|
Spare
| 3sets motor/1set fan/1set control cabinet/chute feed
|
Machine
| 1 set opener+1 set carding machine +1 set needle punching machine or 2 sets needle punching machine
|
>>
