A400-13-4V Vertical Quadplex Solventless Laminatior Two-Layer Three-Layer and Four-Layer Solventless Lamination in One Pass Multi-Functional Laminating Machine

US$370,000.00-420,000.00 1 Set (MOQ)

Basic Info.

Model NO.
A400-13-4V
Classification
Solventless Laminating Machine
Application
Packaging Paper, Film Material
Driven Type
Electric
Automatic Grade
Automatic
Membrane Material
PET Film
Glue Mixer
Included
Machine Weight
About 18000 Kg
Max Web Width
1300mm
Transport Package
Stretch Film Packing
Specification
13500(L) x 5000(W) x 4800(H) mm
Trademark
SINOMECH
Origin
China
HS Code
8441801000
Production Capacity
300

Product Description

A400-13-4V Vertical Quadplex Solventless Laminatior Two-Layer Three-Layer and Four-Layer Solventless Lamination in One Pass Multi-Functional Laminating Machine

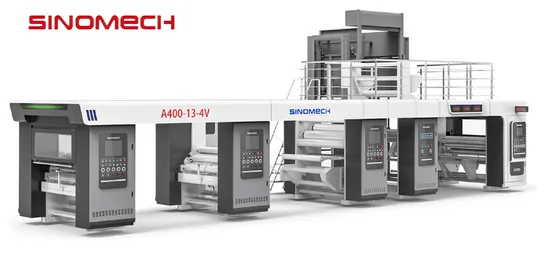

Model A400-13-4V Solventless Laminating Machine, developed by Sinomech Corp., is suitable for all flexible materials, including plastic films, matalized films, Al foils and light papers. Product Parameters Product Parameters
Model NO. A400-13-4V
Mulching Modes Two-Layers/Three-Layers/Four-Layers Lamination
Membrane Material BOPP/CPP/PET/PE/VMPET/VMCPP/BOPA/AL etc.
Max.Laminating Speed 400m/min
Max web width 1050/1300/1500mm
Max Unwinding Dia 1000mm
Max Rewinding Dia 1000mm
Core ID 3"or 6"
Installation power 200KW
Machine weight About 8,000 kg
Machine dimensions 13500(L) x 5000(W) x 4800(H) mm
Machine color Sinomech standard or as requested
Materials to be laminated
Materials Thinkness
BOPP 18-30 µm
CPP 18-30 µm
PET 12-30 µm
PE 30-120 µm
VMPET 12-30 µm
VMCPP 18-60 µm
BOPA 15-30 µm
AL 6-9 µm
Company Profile Company Profile Sinomech Corporation, established in 2007, with the headquarter in Guangzhou, is the Chinese leading supplier of solventless laminating equipment and other related machines.
Exhibition Show Exhibition Show We are a Chinese laminator manufacturer. In order to keep ahead of the lamination industry, we participated in many exhibitions at home and abroad.
Certifications Certifications Sinomech has received international certificates of ISO9001, ISO14001, ISO45001, and ESG, etc. All the products are conformed to CE safety standards.
