Hydraulic Pressure Qp600 Automatic Block Making Machine 400*100*200 mm

Product Description

Product Description

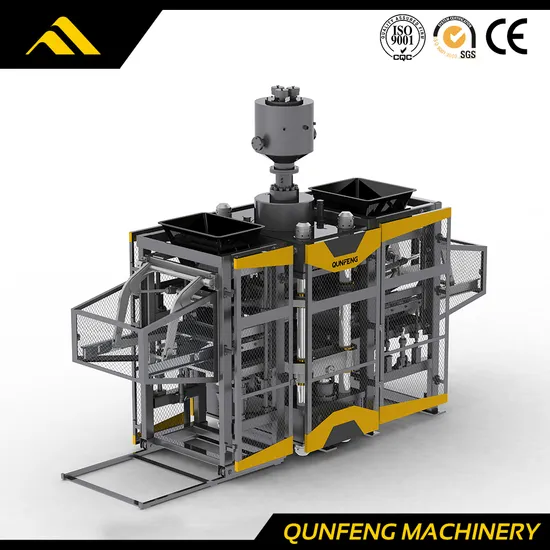

QP600 Automatic hydraulic pressing machine
The equipment adopts a concealed high-frequency micro-vibration concrete feeding system, which makes concrete feeding more efficient. It can produce high-strength standard bricks with surface layer, pavement bricks, imitation stone bricks, etc. It adopts brand PLC control to realize the integration and automation of machine, electricity, and liquid.
Main technical features
1. Automation: The equipment adopts brand PLC control, realizes automatic operation, and can remotely monitor and troubleshoot problems.2. Feeding material is more precise: the double-motor concrete feeding system controls the front and back feeding time of the same brick to achieve concrete feeding balance.3. Low noise, faster and more uniform cloth: Equipped with vibrating table micro-vibration system to vibrate cloth more evenly and lower noise.4. It can realize dry-process PC terrazzo.

Main Pressure	6000KN
Maximum pressure of main cylinder (MPa)	21
Static pressure molding	vibration and compression molding
Product height (mm)	50-150
Molding cycle (s)	17-24
Main equipment dimensions (mm)	6510×2400×4800
Power (kW)	69
weight (T)	28
Pallet size (mm)	PVC Pallet 950×950×(25-28)
	Steel Pallet 950×950×12
No. of molding blocks per mold (mm)	Solid Brick (238×115×48) 36pcs.
	Paving brick(200×100×60) 24pcs.
