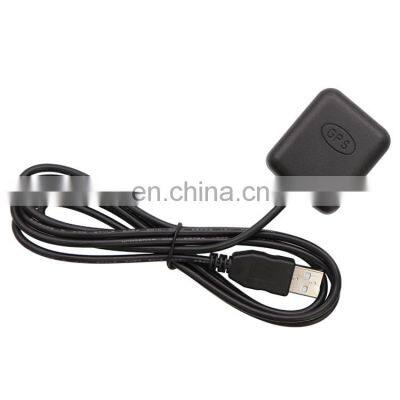

Car Rearview Mirror Tracker Marine Laptop Chip Satellite Antenna Mini Usb Gps Receiver

Product Description

Product Description
Description
The HR-45R-20DUB module series is a family of stand alone GPS receivers featuring the high performance UBX 7 positioning engine.
These flexible and cost effective receivers offer numerous connectivity options in aminiature 45x38x13mm package.Their compact architecture and power and memory options make HR-45R-20DUB modules ideal for battery operated mobile devices with very strict cost and space constraints.
The 56-channel UBX M8 positioning engine boasts a Time-To-First-Fix (TTFF) of under 1 second. The dedicated acquisition engine, with over 1 million correlatorsis capable of massive parallel time/frequency space searches,enabling it to find satellites instantly. Innovative design and technology suppresses jamming sources and mitigates multipath effects, giving HR-45R-20MXB GPS receivers excellentnavigation performance even in the most challenging environments.
Applications
-UVA(unmanned aerial vehicle)
-DVR(Digital Video Recording)
-RearView Mirror
-Car Tracker, ect

Main chip	UBX-G7020-KT
Track sensitivity	-165dBm
Time to First Fix	Extremely fast at low signal level
Built in high LNA	YES
Power consumption	Max 25mA 3.3V
Protocol	NMEA-0183 compliant protocol or custom protocol
Operating temperature	-40 to 85℃
Operating voltage	3.0V to 5.0V
Module type	UART/TTL
Size	45x38x13mm
Certification	RoHS compliant(Lead-free)

Customization
These Connectors Are Available!

1	2.5 DC 4Pin 180° Male	6	USB
2	2.5 DC 4Pin 90°Male	7	USB TYPE C
3	3.5 DC 3Pin 180°Male	8	4pin BM head
4	3.5 DC 3Pin 90°Male	9	NO Connector
5	Molex	10	Custom

Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
