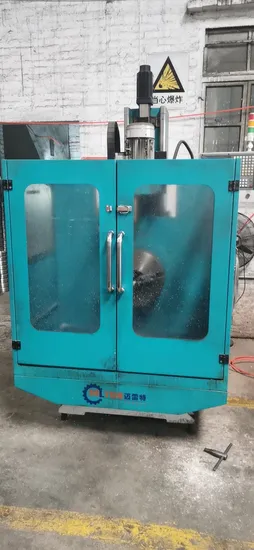

CNC Roller Shell Drilling Machine (MLT-WZ400)

Product Description

1-spindle of CNC pellet feeding roller shell drilling machine
Technical description
1. Ring die hole drilling and repair machine.
2.Supplement of the gun drill processing,ring die hole decompression.
3.With a torque detaction function,automatic indentification and skip of the blind hole or hole blocking.
4.Single spindle or double spindle can be optional,unique protection,can process wooden pellet ring die and feeding pellet ring die.
5.Specialized drilling system MLT-Z208.Mature hardware and software system,use-friendly,intuitive interface,stable performace,no programming,the relevant parameters of the hole through the CNC system interface can be filled.
6.MLT series of motors,with anti-oil,engage in corrosion and so on.
Parameter description

MLT-WZ4000W main configuration
Item	Processing Detail	Figure	Remarks
1	Maximal Outer diameter	Ø600mm
2	Minimum Inner diameter	Ø180mm
3	Hole drilling size	Ø5~13mm
4	Maximal Width	420mm
5	Spindle speed	100-2500rpm
6	Forward & backward travel range	420mm
7	Positioning accuracy	0.02
8	Feeding motor	X/Y/Z full servo motor
9	Language	English
10	NC control system	Z208i
11	Machine net weight	~1000kg
12	Machine size	1620mm x 1200mm x 2100mm

---
