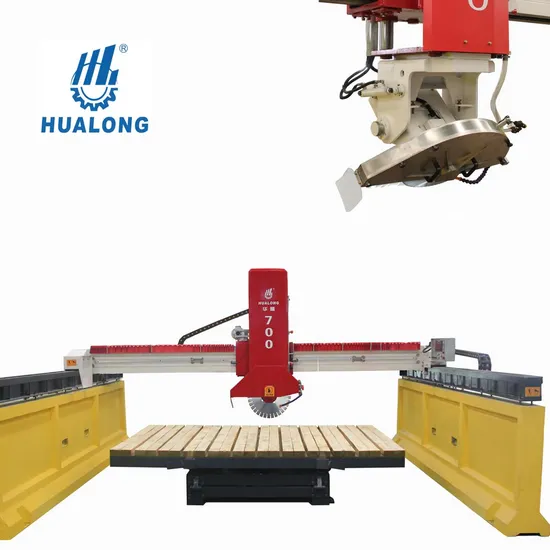

Hlsq-700 Infrared Granite Slab Tile Infrared Stone Bridge Saw Machine

Product Description

Infrared Automatic Bridge Stone Cutting Machine HSQ-700 is mainly used for granite, marble cutting, with many advantages such as
rational construction, steady movement, high accuracy, convenient installation and maintenance. Compared with similar products,
the advantages are obvious. It is a very important and common equipment in stone processing equipment.

TECHNICAL DATA FOR HLSQ-700
Configuration	Diameter of blade	mm	Φ400 - 700
	Power of main motor	kw	18.5
	Working platform dimensions	cm	320 x 200
Main Performance Parameters	Max. processing dimensions	mm	3200 x 3200 x 220
	Working platform tilting degree	n°	0-85
	Working platform rotating degree	n°	90-360
	Water consumption	m3/h	4
Measurement	Gross weight	kg	6100
	Dimension (L x W x H)	cm	600 x 500 x 280

Main Features 1) Controlled by PLC, operated expediently, accurately and stably.
2) Cutting head can tilt 45° for mitre cuts (Optional function).
3) Working table can tilt at 85 degrees for easy loading slabs and rotates 360 degree for ideal cutting. A full 360° rotating table enables precision cutting of material edges.
4) Laser device is adopted for slab positioning accurately.
Company Profile


Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

---
