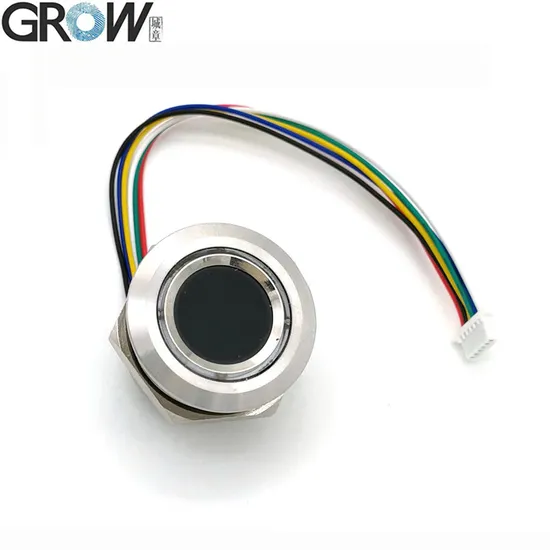

Grow R503 New Round LED Control Capacitive Fingerprint Module Sensor Scanner

Product Description

Description 1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box

R503 fingerprint module with RGB ring indicator light, LED can be controlled by command.

	R503	R503-5V	R503-M22	R503Pro	R503S
Power Supply	DC 3.3V	DC 5V	DC 3.3V	UART: DC 3.3V USB:DC 5V	DC 3.3V
Sensing Array	192*192 Pixel	192*192 Pixel	192*192 Pixel	192*192 Pixel	160*160 Pixel
Fingerprint Capacity	200	200	200	1500	150
Size	M25	M25	M22	M25	M25
Connector	SH 1.0mm 6pin	MX 1.25mm 6pin	SH 1.0mm 6pin	SH 1.0mm 6pin	SH 1.0mm 6pin

R503 Specifications

Model	R503
Type	Capacitive Fingerprint Module
Interface	UART(TTL)
Resolution	508 DPI
Voltage	DC 3.3V
Fingerprint Capacity	200
Sensing array	192*192 pixel
Working current	20mA
Standby current	Typical touch standby voltage: 3.3V, Average current: 2uA
Fingerprint module external size	Diameter 28 (mm)
Fingerprint module inner size	Diameter 25 (mm) (M25)
Fingerprint module height	19 (mm)
Effective collection area	Diameter 15.5 (mm)
Connector	SH1.0-6Pin
LED Control	YES
LED Color	RGB
Scanning Speed	< 0.2 second
Verification Speed	< 0.3 second
Matching Method	1:1; 1:N
FRR	≤1%
FAR	≤0.001%
Work environment	-20C ---60C
Work Humidity	10-85%
Anti-static capacity	15KV
Abrasive resistance intensity	1 million times
Communications baud rate (UART):	(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

Files·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

You can download the R503 user manual from this website link:
https://hzgrow.en.made-in-china.com


R503 Test program operation display video on Youtube: https://youtu.be/eD2xtwCWOmQ


If need SDK files,pls contact us.

---
