UV/560 PVC Injection Molding Machine

US$1.00-2.00 1 Piece (MOQ)

Basic Info.

Model NO.
UV/560
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Certificate of Origin
1
Certificate of Fumigation
1
Packing List
1
Commercial Invoice
1
Easy Broken Parts
1
Transport Package
Wooden Pallet and Dust Cover
Trademark
K&E
Origin
China
HS Code
8477101090
Production Capacity
200/Y

Product Description

PVC IMM :
Cooling fan installed on barrel,Widened protective door.,Increased motor.

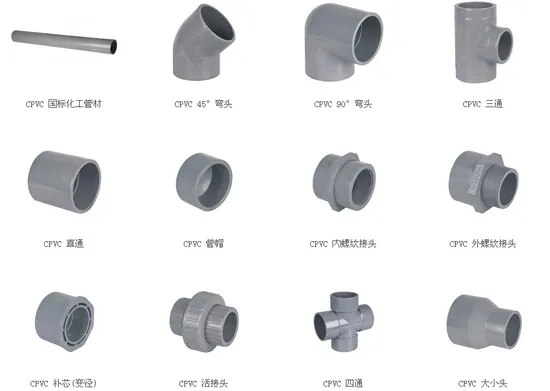

The main production of PVC material pipe fittings
Parameters:
PVC STYLE SPECIFICATION UV/560
SCREW TYPE A B C D
Injection Unit
Screw diameter mm 80 85 90 100
Screw L/D ratio L/D 22 20.7 19.6 17.6
Shot volume(theoretical) CM3 2212 2497 2799 3456
Injection weight(PVC) g 2818 3181 3566 4403
Injection rate g/s 620 700 785 970
Injection pressure MPA 179 159 142 115
Screw speed rpm 80
Clamping Unit
Clamping force KN 5600
Open stroke mm 850(860)
Space between tie-bars(W*H) mm 830*830
Max mould height mm 850
Min mould height mm 330
Ejector stroke mm 240
Ejector force KN 150
Others
Max pump pressure MPA 16
Pump Motor power KW 58
Heating power KW 31.4
Numbers of heating area Segment 5+1
Machine dimension(L*W*H) M 8.45*2.15*2.84
Oil tank cubage L 795
Machine weight TON 21

Configuration List:
Name Brand
Computer KEBA(AUSTRIA) or EST
Servo Drive INOVANCE(CHINA)
Servo Pump SUNNY(USA) / SUMITOMO(JAPAN)
Servo Motor PHASE(ITALY)
Electro-hydraulic Proportion valve HNC (Taiwan)
Stroke transducer NOVO or Miran(GERMANY)/GERFRAN(ITALY)
Breaker Schneider (FRANCEN)/Siemens(GERMANY)
Contacts Schneider (FRANCEN)/Siemens(GERMANY)
Switch Schneider (FRANCEN)/Siemens(GERMANY)
Hydraulic Direction Valve Vickers (USA) or Rexroth (GERMANY)
Plasticing Motor DINAMIC(ITALY) or STF(ENGLAND)
Hydraulic Hose MANULI(ITALY)/CONTINENTAI(GERMANY)
Plasticing speed sensor OMRON
Sealing ring HALITE or TREIIEBORG(UK or GERMANY)
