Low Price Black Coating 4 Flutes Tungsten Carbide Ball Nose End Mills

Product Description

Product Description

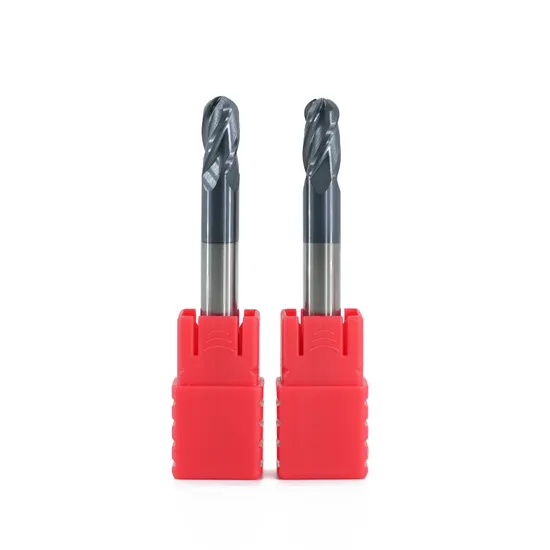

High quality 4Flutes ball nose end mills
Helix Angle:35 degree
Suitable Machine:Milling Machine, CNC processing center and so on.Applications for:
Iron,cast Iron,stainless steel, alloy steel, carbon steel, mould steel and tool steel, high speed processing engraved and cutting.Advantages:
1.Imported Tungsten Carbide rod.
2.Using Import ANCA Machine high precision grinding, polish processing.
3.Sharpen edge, big chips drain, wear resistance.

Customized support	OEM
Place of Origin	China,Jiangsu
Brand Name	HIBOO TOOL /Customized
Model Number	Standard(Ball Nose End Mill)
Coating	AlTiN, TiAlN, TISIN,Balzers AD,Blue Nano Coating
Precision	High Precision Cutting
HRC	45/50/55/58/60/70 degree
Flutes	2/4 Flutes
Controlling Mode	CNC Tooling System
Processing Type	Metal cutting tool/General use
Color Ring Series Milling Cutter	TGH Green,TGR Red,TGP Pink,TGB Blue,TGA White.
Suitable for	Alloy steel,Copper,Cast Iron,Carbon Steel,stainless steel,etc.
Transportation	Sea/Express/Air
Coating color	Black & Bronze & Gold & Blue
Shank diameter	4-20mm
Cutter diameter	1-20mm
R	0.5-10mm
Total length	50-200mm
Cutter length	3-30mm
Material	Tungsten steel

Product Show
Product Specification
The following Specification for your refer, We also provide the OEM or ODM service.

(Order No)	Cutting	Shank	Flute	A.0.L
	d	D	l	L
R0.5×2×4D×75L×4F	1	4	2	75
R0.75×3×4D×75L×4F	1.5	4	3	75
R1.0×4×4D×75L×4F	2	4	4	75
R1.25×5×4D×75L×4F	2.5	4	5	75
R1.5×6×4D×75L×4F	3	4	6	75
R1.75×7×4D×75L×4F	3.5	4	7	75
R2.0×8×4D×75L×4F	4	4	8	75
R2.5×10×6D×75L×4F	5	6	10	75
R2.5×10×6D×100L×4F	5	6	10	100
R3.0×12×6D×75L×4F	6	6	12	75
R3.0×12×6D×100L×4F	6	6	12	100
R3.0×12×6D×150L×4F	6	6	12	150
R4.0×16×8D×75L×4F	8	8	16	75
R4.0×16×8D×100L×4F	8	8	16	100
R4.0×16×8D×150L×4F	8	8	16	150
R5.0×20×10D×100L×4F	10	10	20	100
R5.0×20×10D×150L×4F	10	10	20	150
R6.0×24×12D×100L×4F	12	12	24	100
R6.0×24×12D×150L×4F	12	12	24	150
R7.0×28×14D×150L×4F	14	14	28	150
R8.0×32×16D×150L×4F	16	16	32	150
R10×40×20D×150L×4F	20	20	40	150

Packaging & Shipping
Package and shipping details
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
We cooperated with DHL , Fedex, UPS ,TNT, EMS and other express you wanted.

Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity.

Payment Term
T/T ,Western Union , MoneyGram,L/C
