Onen Factory Produce 6m 8m 10m 12m High Lifting Aerial Work Platform Electric Self Propelled Scissor Lift with CE RoHS Certificate for Construction Warehouse

Product Description

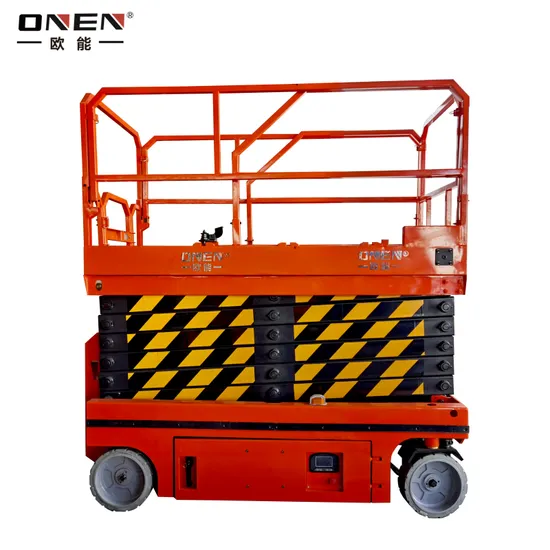

ONEN self propelled electric scissor lift working platform.
1, Strong power AC motor, hydraulic driving system, more stable and smoothy for driving and lifting.
2, Extendable platform, spacious and safe working space.
3, Pothole protection device, anti-collision protection, falling alarm and other safety systems, safe and reliable.
4, The integrated high-definition LCD instrument integrates functions such as lifting operation buttons, mode selection, power display, and working time.

No.	Name		Unit	ON0608	ON0810	ON1012	ON1212
1	Max. Capacity		kg	230	450	320	320
2	Load of platform extension		kg	110	110	110	110
3	Service Weight		kg	1390	2460	2800	2985
4	Overall width	b	mm	760	1150	1150	1150
5	Wheelbase		mm	1370	1850	1850	1850
6	Track width		mm	646	1020	1020	1020
7	Wheel size		mm	Φ305x114	Φ380x130	Φ380x130	Φ380x130
8	Max. Number of workers (Indoor)			2	3	2	2
9	Max. Working height		mm	8000	10000	12000	13900
10	Max. Platform height		mm	6000	8000	10000	12000
11	Folded overall height(Rails up)	h1	mm	2170	2340	2460	2582
12	Folded overall height(Rails down)	h2	mm	1840	1710	1830	2030
13	Platform size (Length × Width)	L1×b1	mm	1840×760	2243×1134	2243×1134	2243×1134
14	Platform extension length	L3	mm	900	1000	1000	1000
15	Overall length (Extented)	L2	mm	2720	3243	3243	3243
16	Overall length (Indented)	L1	mm	1840	2243	2243	2243
17	Truning radius (Inside/Outside)		mm	1550	2200	2200	2200
18	Ground clearance	M	mm	60	85	85	85
19	Ground clearance(Pothole protection opened)		mm	20	25	25	25
20	Max. Hydraulic power(Function module)		Bar	240	240	240	240
21	Max. Wind speed		m/s	0	12.5	12.5	0
22	Travel speed (Folded)		km/h	4	3.5	3.5	3.5
23	Travel speed (Raised)		km/h	0.8	0.8	0.8	0.8
24	Gradeability(Pothole protection closed)		%	25	30	25	25
25	Max. Working slope		°	3/1.5	3/1.5	3/1.5	3/1.5
26	Vibration value at most		m/s2	2.5	2.5	2.5	2.5
27	Voltage/Capacity of lead-acid battery		V/Ah	24/160	24/160	24/160	24/160
28	Sound leave at driver's ear		Db	<70	<70	<70	<70
