Economic China Vertical Machinig Center Xh7126 CNC Milling Machine for Sale

Product Description

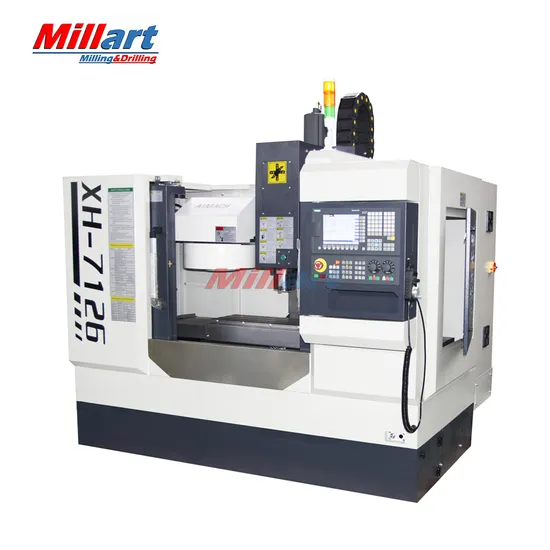

Economic China Vertical Machinig Center XH7126 CNC Milling Machine For Sale
Feature:
As one new product of independent design & development, XH7126 is a multi-purpose machine which could mill surface & drill holes. This machine adopts domestic/overseas branded numerical control system and realizes full-screen edition in Chinese. Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment; both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws.
With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life, the machine is widely applied to instruments, meters, light industries, electronics, home appliances, medical instruments, aeronautics & astronautics and etc. industries, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals & stainless steel) as well as an ideal equipments for large automation production.
This machine could process holes below ∮16, milling plane below 18 and milling depth below 3mm.
Technical parameter:

Model	XH7126
Main Motor Power KW	3.7KW
Spindle Max. Rotating Speed	Servo Spindle 6000rpm
Z Motor Torque	7.7N.m
X Motor Torque	6N.m
Y Motor Torque	6N.m
Spindle Taper	BT40
Worktable Size	800X260mm
X,Y,Z axis travel	450X320X420mm
Distance of Spindle Axis to Guideway Plane	360mm
Distance of Spindle End to Worktable	90-510mm
Positioning Accuracy	0.02mm
Repeated Positioning Accuracy	0.01mm
Machine Overall Dimension (L*W*H) mm	2600*1950*2400
Machine Net Weight KG	2400
Magazine Capacity	12 (Bamboo Hat)

Standard accessories:
Fanuc 0i MF control System
Spindle speed 6000rpm
12 tools umbrella type Magazine
Linear guide way
Oil coolant pump
Full closed protection
Mobile pulse generator
Automatic lubrication system
Tri-color warning light
Coolant system
Working Lamp
Air gun

---
