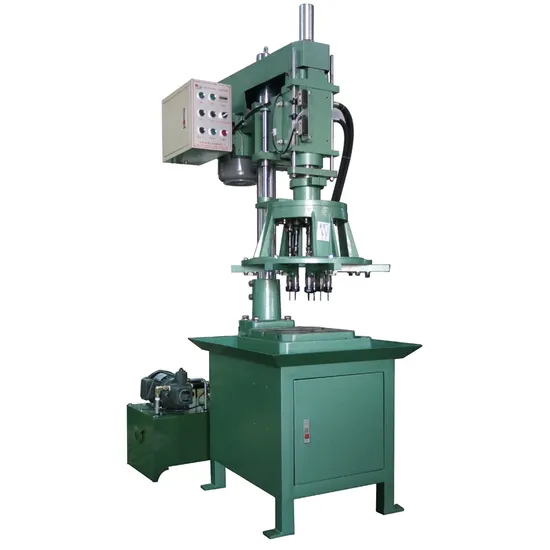

20 Years Factory Cheap Price CE Certified Provide Fully Automatic Bench Table Drilling Machine Mini Drill Press

US$3,324.00
1 Set/Sets
US$3,124.00
2-4 Set/Sets
US$3,024.00
5-7 Set/Sets
US$2,980.00
8-9 Set/Sets
US$2,750.00
10+ Set/Sets

Basic Info.

Model NO.
CX-13016
Controlling Mode
CNC
Number of Shaft
Customized
Hole Diameter
16mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Auto Multi-Spindle Head Drilling & Tapping Machine
Machine Type
Vertical Bench Table Type Drilling Machine
Application
Make Holes on Metal
Warranty
One Year Warranty
Max Drilling Diameter
1-16mm
Advantage 1
Multi-Functional
Advantage 2
High Accuracy
Advantage 3
Competitive Price
Spindle Travel
130mm
Base Size
297*440mm
Brand
Chansin
Transport Package
Plywood Case
Specification
114*74*194cm
Trademark
Trade Mark
Origin
Dongguan, China
HS Code
8459700000
Production Capacity
80 Sets Per Month

Product Description

Product Description
20 Years Factory Cheap Price CE Certified Provide Fully Automatic Bench Table Drilling Machine Mini Drill Press
CX-13016 Parameters
Max Drilling Diameter 16mm
Spindle Travel 130mm
Distance from Spindle Center to Column 210mm
Distance from Spindle Nose to Working Table 335mm
Spindle Taper JT6/ER25
Spindle Rotation Range 1400/2000rpm
Working Pressure 20-25kg/cm2
Base Size 297*440mm
Total Height 1080mm/1820mm
Motor Power 1.5kw
Voltage 240v/380v/415v
Cooling Pump Motor Power 45w
Weight 280-490kg

Standard Type Drilling Machine
Drilling Machine CX-8510 CX-13016 CX-15035
Maximum Drilling Diameter 10mm 16mm 35mm
Electricity 380V/415/440V 3 Phase 380V/415/440V 3 Phase 380V/415/440V 3 Phase
Spindle to Column Distance 200mm 210mm 250m
Spindle Nose to Work Table 100-330mm 100-350mm 120-420mm
Spindle Speed 1400/2800 rpm 1400/2000 rpm 1000/1400 rpm
Machine Head Travel 280mm 280mm 320mm
Motor Power 0.75kw 1.5kw 2.2kw

Standard Type Tapping Machine
Tapping Machine CX-4508 CX-6516 CX-6516
Tapping Range 1-8mm 2-16mm 5-32mm
Machine Head Travel 260mm 300mm 460mm
Spindle Nose to Work Table 90-350mm 100-350mm 100-600mm
Multi spindle Capacity M2*16,M3*9,M4*5,M5*3,M6*2,M8*1 M4*13,M5*10,M6*7,M8*4,M10*3,M12*2,M16*1 M8*16,M10*10,M12*7,M14*6,M16*4,M18*3,M20*3,M32*1
Motor Power 0.75kw 1.5kw 2.2kw
Electricity 380V/415/440V 3 Phase 380V/415/440V 3 Phase 380V/415/440V 3 Phase
Spindle Stroke 45mm 65mm 65mm

Drilling and Tapping Heads
CX-HD5-85 AIR/HYDRAULIC DRILLING HEAD Maximum Drilling φ1-φ10mm
Main Spindle Taper ER20/JT6
Main Spindle Travel 85mm
Spindle Max Rotating Speed 1400 (r/min)
Cylinder Area 21.6m2
Center Height 70±0.01
Motor 0.75KW
Net Weight 38kg
Using Hydraulic 20-30 kg/cm2
Size(L*W*H) 115*464*370mm
CX-HD6-130 HYDRAULIC DRILLING HEAD Maximum Drilling φ1-φ16 mmMain Spindle Taper ER25/JT6Main Spindle Travel 130mmSpindle Max Rotating Speed 1400 (r/min)Cylinder Area forward 37.1m2 backward 15.8m2Center Height 70±0.01Motor 1.5KWNet Weight 50kgUsing Hydraulic 20-30 kg/cm2Size(L*W*H) 160*719*417mm
CX-HD8-150 HYDRAULIC DRILLING HEAD Maximum Drilling φ1-φ35mmMain Spindle Taper MT4/LINE GROOVEMain Spindle Travel 150mmSpindle Max Rotating Speed 1500 (r/min)Cylinder Area forward 71.2m2 backward 31.4m2Center Height 90±0.01Motor 1.5KWNet Weight 67kgUsing Hydraulic 20-30 kg/cm2Size(L*W*H) 280*860*470mm

Non-standard Drilling & Tapping Machine
Detailed Photos
Company Profile
FAQ
1. Are you a manufacturer or trade company?
-- Yes, we are a manufacturer, our factory is in Dongguan, Guangdong Province, China.2. What is payment terms?
-- 30% deposit, the balance will be paid before delivery.3. What is the warranty time ?
-- One year warranty and life time maintenance.4. Do you provide OEM service?
-- Yes,we provide OEM service.5. Can you send engineers to serve overseas ?
-- Yes, we can, but you are responsible for round-trip air tickets and accommodation of our engineers.6. What is the loading port ?
-- Shenzhen / Guangzhou port in China.
