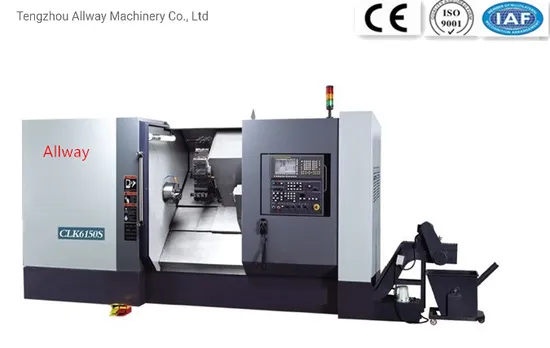

CNC Slant Bed Lathe Machine

Product Description

The product adopts 30 ° inclined bed distribution, X, Z two servo straight axis, and hydraulic drive the tailstock feed shaft axis (W), linear guide type structure, high rigidity spindle unit, servo tool turret, once complete clamping, be able to realize cutting,boring, and other functions, is a ideal equipment for medium size shaft, disk type parts mass production.
1) Main basis parts like pedestal, lathe bed, carriage, spindle box uses HT300 cast iron , with resin sand molding and after aging treatment; The pedestal and slide seat are box type structure, compact and reasonable symmetric reinforcement of the main basis parts to ensure the high rigidity and resistance bending damping performance; provides the guarantee for the stability of the machine tool use for a long time performance.
2)X, Z, W adopt linear roller rolling guideway, with automatic forced lubrication, greatly reduce feed movement of the friction resistance, improve the accuracy of machine tool and life;
3)X, Z, adopt high precision, ultra-quiet, double nut preloading ball screw, high feed speed;Drive motor connect with ball screw directly by flexible coupling , feed servo motor directly transport power to high precision ball screw, no gap, ensure the accuracy of the machine positioning and synchronization;
4) W axis is feeding shaft by hydraulic control, realize the tailstock withstand tight function;
5) The spindle adopts high speed, high precision, high rigidity spindle unit structure, good performance, easy to maintain;
6) 12 location servo tool turret, the speed of change tool is faster than ordinary hydraulic tool turret, more excellent performance and reliable;
7)Adopts full protection structure design, convenient operation, safe and reliable;
8) Machine operating system on the principle of human body engineering, operation box independent design, can be its own spin, easy to operate.

SPECIFICATION		UNIT	CLK6150S
Max. swing over bed		mm	Φ700
Max. swing over carriage		mm	Φ380
Distance from spindle chuck to the apex of tailstock		mm	105-655
Max. processing length		mm	600
Travel	X axis	mm	245
	Z axis	mm	600
Rapid feeding for X,Z		m/min	X:24/Z:24
Guideway type			linear roller rolling guideway
Screw specification		mm	X:φ32*10
Screw specification		mm	Z: φ40*12
Spindle	Max.spindle speed	r/min	3000
	Spindle bore	mm	Φ86
	Max.Dia.of through bar	mm	Φ74
	Spindle nose type		A2-8
	Spindle inner cone	(metric)mm	φ100
	Spindle bearing inner diameter (leading-end)	mm	φ140
Spindle	Spindle bearing inner diameter (rear-end)	mm	φ120
	Main motor	KW	15/18.5
	Hydraulic chuck	mm	10″(254)
Tailstock	Tailstock inner cone	Mores	MT-5
	Tailstock drive mode		Hydraulic
	Tailstock travel	mm	550
Tool turret	Tool position number	PCS	12
	Square cutter dimension/boring cutter rod diameter	mm	25/φ40
	Change tool time	s	0.5
	Repeat positioning accuracy	mm	±2
Positioning accuracy		mm	±0.008
Repeat positioning accuracy		mm	±0.004
Square shank Dia.of tools		mm	25
Round shank Dia. tools		mm	40
Overall dimension		mm	3600×2000×1950
weight		kg	7000

3.Standard configuration
1)High speed spindle unit.
2)12-position servo turret.
3)Manual pulse generator.
4)Centralized automatic oil lubrication system.
5)The external cooling system and water tank; ;
6)full metal protective shield and guideway protective
7)Adjust mat iron
8)Work lamp;
9)Warning lamp;
10)Hydraulic unit;
11)Automatic chip conveyor
4.OPTIONAL configuration:
1)Special cutter holder;
2)frequency conversion hydraulic unit;
3)The setting tool instrument;
4)FAUNC,Mitsubishi,Siemens,or CNC system.

---
