PVC UPVC PPR Two Output Plastic Pipe Production and Extrusion Line

Product Description

Product Description
Hot Sales PVC Double Pipe Extrusion Line/Production Line
PVC pipe production line is mainly used in the manufacture of the plastic PVC pipes with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc. This line is made up of the conical twin-screw extruder, vacuum forming table, haul-offs, cutter, rickstand, etc. The extruder and the haul-offs adopt the imported AC frequency control device. The vacuum pump and the electric vehicle motor empoly the superior goods. The haul-offs has the traction modes such as two-caterpillars, three-caterpillars, four-caterpillars, five-caterpillars and so on. It is additionally attached with measuring apparatus and the intensifying device. The unit is reliable and efficient production pvc pipe extrusion line and pvc/c pipe extrusion line.
Features:
Our PVC pipe extrusion machine has features of low energy consumption, high output, stable running etc. The standard PVC pipe extrusion machine include: material feeder, SJSZ series conic twin screw extruder, mould, vacuum calibration tank, spray cooling tank(for big pipe), haul-off, cutter, stacker/automatic belling machine. Clients also can choose Single/Four PVC pipe extrusion line to make small size PVC pipes.
The main electrics for PVC pipe extrusion machine adopt Siemens Beide motor, Siemens contactor, ABB inverter, RKC/OMRON temperature controller.
Product Parameters

Diameter range(mm)	Extruder Model	Main motor power(KW)	Capacity(KG/H)		Haul off speed(m/min.)
16-32 Four	SJSZ65/132	37 AC	250	10×4
16-40 Dual	SJSZ51/105	18.5 AC	150	6×2
20-63 Dual	SJSZ65/132	37 AC	250	10×2
20-110 Dual	SJSZ80/156	55 AC	400	3×2

Detailed Photos

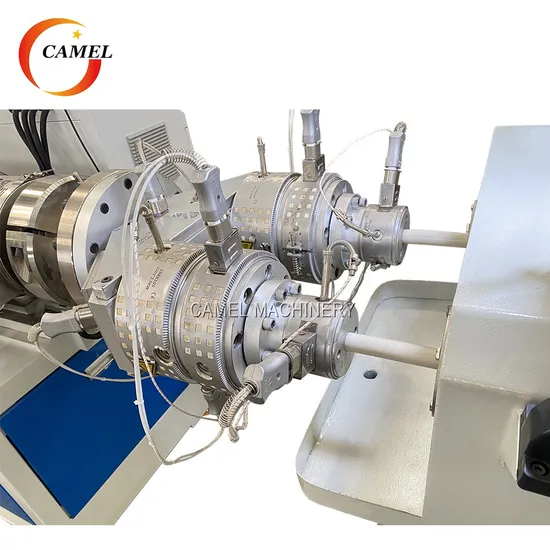

Twin screw extruder Two-cavity extrusion mould Vacuum calibration cooling tank
Haul-off and cutting Machine Laser printer
Stacker Socket machine
Company Profile
Packaging & Shipping
FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
A6:380V 50hz 3 phase or any other voltage according to client's requirement.

---
