20 FT &40FT Automatic Hydraulic Telescopic Spreader for 20FT 40FT Containers

Product Description

QSHI full Automatic 20-40ft telescopic Spreader for Loading ISO Containers

Description:
QSHI LS series container spreaders are designed for loading and unloading ISO containers. The LS series full automatic spreader can used on RMG, RTG,STS crane and other lifting equipment. Full-electric telescopic spreader, full-electric lock and unlock.
The LS series spreader can handle up to 20 tons and other tons of safe working load (SWL). It is equipped with a high-performance power unit to operate the ISO floating twist lock and flip drive.
-The repair and maintenance of the electric spreader will be greatly simplified, thus reducing the cost of use.
-High working reliability, simple repair and maintenance will make the electric spreader work more reliable.
-The motor is only energized when it needs to move, and it usually does not consume electricity. The low energy consumption also reduces the cost of using the spreader.
-The electric spreader has a compact structure and light weight.
Drawing:
Technical parameters:

/Model:GBM20		/ Power voltage/ Frequency		AC 380V (3P)/50HZ(/ as agreed)
ISO20',40'45' For operation with ISO standard 20',40'and45' containers		Control voltage		AC 220V
Rated lifting load	20T	Total power		5KW
Allowable load eccentricity	1.25m , 0.26m Length direction: 12.5m, Width direction :0.26m	Precaution class		IP 55
Load of lifting lugs at four corner	5t×4	Twistlock Mode	ISO floating twistlock, driven by an electric motor
() Self-weight (spreader)	7.2t	Telescopic Mode	The telescopic system is driven by means of an electric motor connected to an endless chain.
(20'40') Expansion time (20'to 40')	~ 30 S	Flippers Device	/ The corner flippers are drived by electric motor or Fixed guide plate
( 90° ) Twistlock rotation 90°	< 1 S
( 180°) Flipper through 180°	5~7 S	Application	,, RMG, RTG,Crown block

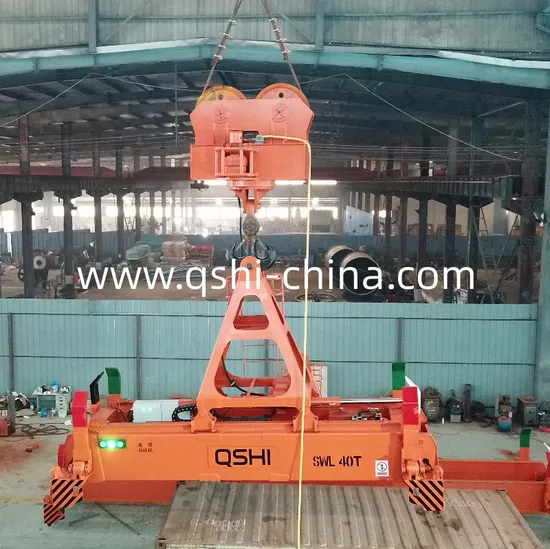

Photos for reference:
About us
QSHI supplies different kinds of products. High quality and favorable price.
We're pleased to get your Inquiry and we will feedback ASAP.
We stick to the principle "Quality First, Service First, Continuous Improvement and Customer Satisfaction" and aim at "Zero Defect Zero Complaint".
To perfect our service, we provide products with good quality at reasonable price.
Our Service
Being a good adviser and assistant of client, we can help them to get rich and generous returns on their investment.
1.Pre-sale services:
a: Design customized project for clients.
b: Design and manufacture products according to clients special requirement.
c: Train technical personnel for clients.
2.Services during the sale:
a: Help clients to find reasonable freight forwarders ahead of delivery.
b: Help clients to draw solving plans.
3.After-sale services:
a: Assist clients to prepare for the construction scheme.
b: Install and debug equipment.
c: Train the first-line operators.
d: Examine equipment.
e: Take initiative to eliminate the troubles immediately.
f: Provide technical exchanging.
FAQ
ORDER INTRODUCTION:
Pls kindly send us your detailed specifications as follow if you are interested in our container spreaders.
1. What's the SWL of your crane?
2. What's the type of your crane?
3. What's the working condition of spreader?
We will offer you the best suitable solution with best price and quality.
These specifications above can make it clear about your requirements.
Thanks very much for your kindly cooperation!

---
