High Power Electric Water Thruster Waterproof DC Brushless Motor

Product Description

Product Parameters Feature:

A	Rated power	84w
B	Stock and shipping time	Production completion within 45 working days
C	Speed & direction adjustment	Easy
D	Size range and noise	55.5mm to 60mm size range with low noise
E	Stability for driver/controller	Strong
F	Lifetime	Above continuous 10000 hours
G	Protection rank	IP68 protection rank is available
H	Energy efficiency	Above 92% energy efficiency motor is available
I	2D and 3D file	2D and 3D file is available if customers needed
J	Motor type	Brushless DC motors
K	Driver and controller	High-performance and stable matching

Long Lifespan: Built to last, saving you time and money in the long run.

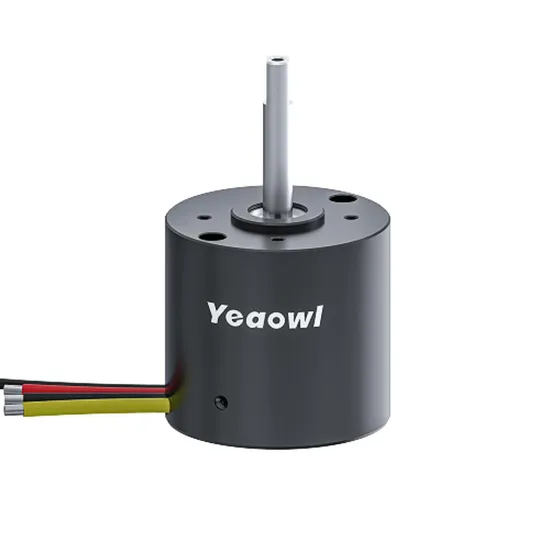

Experience the power and precision of the YO6055X motor, crafted with cutting-edge technology for unmatched performance.
For more details on product specifications and parameters, please click here to contact us for the latest dimensional drawings. Thank you!

Model.No

T

KV

Max Amps (A)

Max Volt (V)

Continious (W)

Rated torque (N.M)

Max Power (W)

Max RPM

RM (MΩ)

NO-Load Current

Shaft Diameter (mm)

Diamtetr*Length(mm)

Bolt pattem (mm)

Weight (g)

Poles

6055X

50T

150

16A

60V

84

0.25

600

8000

500

0.8A

Φ8.0

Φ60*55.5

4-M4

400

14P

More Motor Display
The shape and technical parameters can be modified according to the customer's needs.Can customize the brushless motor needed for research and development according to customer requirements. Motor Customization Process
Simpler processes, more efficient communication, and stricter quality control to ensure that we deliver truly excellent motors to you.
Simpler processes, more efficient communication, and stricter quality control to ensure that we deliver truly excellent motors to you.
Our brushless DC motors are widely used in various electric drive products. Within the effective space size of your product, we can provide stronger power, and we are particularly adept at customizing motors for various application scenarios. For instance, we can cater to requirements such as waterproofing, dustproofing, customized irregular shapes for motor housings, various shaft output methods, different positioning holes, and more, in order to effectively meet your needs for motors. Company Profile
Yeaowl Technology is located in Dongguan City, Guangdong Province ,China, the capital of manufacturing industry. It is a manufacturer and supplier of various types of motors that integrates research and development, production, sales, and service.
As a leading enterprise dedicated to the research and development, production, and manufacturing of various types of motors, we focus on the cutting-edge research and breakthroughs in brushless DC motor technology. Our team is technically oriented and driven by market demand, independently developing and manufacturing various types of high-performance motors. Our products are exported to all parts of the world and have been highly recognized by customers and the market.
We rely on advanced manufacturing and testing equipment, mature manufacturing processes and rich manufacturing experience, excellent technical and management teams, and provide attentive service to customers. Solving customers' pain points is our unremitting goal.
We can provide customers with OEM processing and manufacturing, ODM customized research and development manufacturing based on customer needs to meet your various needs.
We look forward to cooperating with you!Yeaowl Technology Co., Ltd. participates in various industry exhibitions and is invited to the China Hi-Tech Fair every year. At the exhibitions, our new motor products are recognized by the industry and receive orders from customers. Each exhibition is a grand meeting for us to communicate with the market and customers. In terms of quality control, we conduct inspections through various professional instruments and equipment, from the inspection of raw materials upon arrival, to the inspection during the production process, and finally to the inspection of finished products. By relying on reliable instrument data, we ensure the superior quality of our products.
FAQ
Q1:What kind motors you can provide?
A1: For now, we mainly provide DC permanent magnet motors, DC brushless motors, waterproof motors, BLDC motors, motor drives, motor controllers, and provides comprehensive solutions for electric drive products.
Q2:Is there a MOQ for your motors?
A2: Yes. Our minimum order quantity is 100 units or more, but we can accept 1 piece of sample production for your test, the price of sample production will be 100% to 300% different from the bulk price according to different styles.
Q3:Could you send me a price list?
A3: For all of or motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order gty. So it's difficult for us to provide a price list. If you can share your detailed specification and order gty, we'll see what offer we can provide.
Q4:Are you motors reversible?
A4: Yes, nearly all de and ac motor are reversible.We have technical people who can teach how to get the function by different wire connection.
Q5: is it possible for you to develop new motors if we provide the tooling cost?
A5: Yes. Please kindly share the detailed requirements like performance, size,annual quantity, target pricetc.Then well make our evaluation to see if we can arrange or not.
Q6:How about your delivery time?
A6: For brushless DC motors, sample delivery time is approximately 45-60 days; lot time is 50-70 days. Please refer to the sales confirmation for final reference.
Q7:What's your warranty terms?
A7: One year.

---
