Basic Info.
Making Method of Parison
Stretch Blow
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
After-sales Service
Free Service After Sales
Transport Package
Wooden Case
Production Capacity
50sets/Month
Product Description

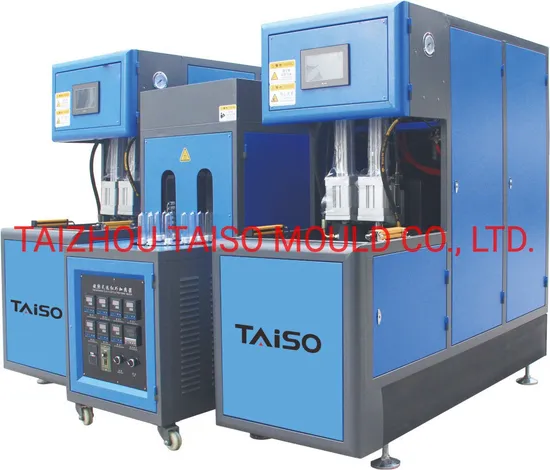

TS-3L-II Semi-automatic stretch blow moulding machine,designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely.
Features
1. Produce bottle from 0.L to 3L bottles
2. Output capacity up to 800 bottles/hour for 0.5L using two cavities blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.
| Model | TS-3L (1 Blower & 1 Heater) | TS-3L-II (2 Blower & 1 Heater) |
| Max. Volume | 3L | 1.8L |
| Output | 300-900BPH | 1200-1500BPH |
| Number of Cavities | 1 & 2 Cavity | 2 Cavity |
| Neck diameter | 18-120mm | 18-120mm |
| Max. diameter | 105-140mm | 130mm |
| Max. Bottle height | 330mm | 340mm |
| Mold thickness | 70-230mm | 70-230mm |
| Clamping stroke | 190mm | 190mm |
| Rated power | 14kw | 20kw |
| Power consumption | 5-8kw | 10-13kw |
| Blower size | 1600*620*1550mm | 1600*620*1550mm*2 |
| Heater size | 1700*600*1350mm | 2160*600*1350mm |
| Weight | 850kgs | 1400kgs |
>>
