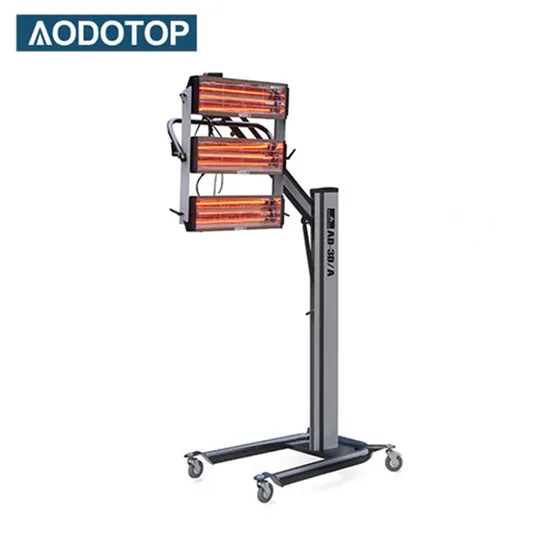

Aodotop Automotive Paint Equipment Curing Lamp Shortwave Car Body Repair Baking Vehicle Paint Shop Infrared Curing Lamp IR Lamp for Drying

Product Description

Product Description Paint Infrared Paint Lamp IR Lamp for Paint Drying

Model	AD-1D	AD-2D	AD-3D
Input voltage(50/60Hz)	230V1 ph	230V 1 ph	230V 1 ph
Emitter power(W)	3x1050	3x1050	3x1050
Max power(kVA)	3.2	3.2	3.2
Timing range(min)	2X35	2X35	2X35
Baking area(m2)	1x0.8	1x0.8	1x0.8
Temperature(°C)	60-70	60-70	60-70
Net weight(kg)	39	39	39
Input voltage can be custom made,e.g.400V 1 ph,400V 3ph

FEATURE: 1.High performance.2.Modern and attractive design.3.Advance paint curing technology.4.Digital displays shows remaining cure time.5.Switch: CE/UL certified, high quality and stable performance.6.Pre-heat and full baking function to achieve gradual temperature increase.7.Key electronic components made in USA/Japan or with CE/UL certification.8.Large and wide chassis can horizontally enter the bottom of the car through the tire.9.Memory function: can set and store 4 frequently used programs making it convenient.10.Individual adjustable emitter cassettes has a long life emitter with life span up to 6000 hours.11.New control panel with ergonomic push button:s with life span 10 times that of mechanical knobs.12.Lamp cassette assembly can be rotated and swivels to achieve best drying position. Convenient height adjustment with gas strut.13.Ideal for polyurethane paint (double components paint), single component paint and water based paint.14.Powerful penetration directly into the inner paint layer; completely drying two component paints within 15 minutes and polyester putty within 5 minutes.15.Ultrasonic distance sensor equip with thermo-compensation, at -40ºC~+85ºC have super precision;temperature sensor has red laser for take aim.
