US$32,600.00-34,600.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Certification
CE, ISO9001: 2000
Power Output
54.3kw/2200rpm
Main Control Valves
Kyb, Japan
Max. Digging Height
7280mm
Max. Dumping Height
4970mm
Max. Digging Depth
4265mm
Max. Digging Distance
6800mm
Transport Package
Load 2 Units in One 40hq Container
Production Capacity
1200set/Year
Product Description

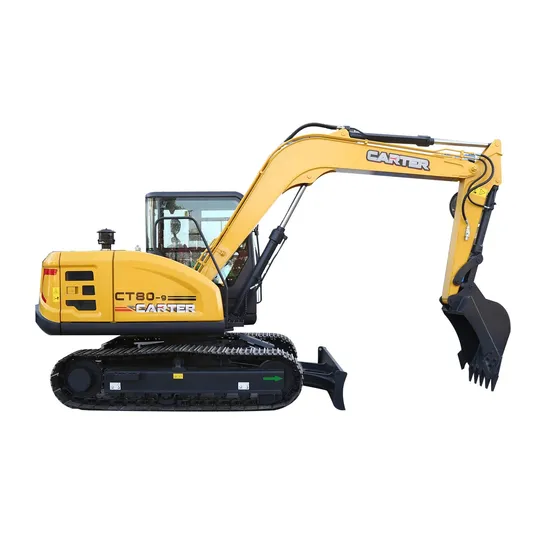

Name:Carter CT80-9 Excavator
Advantage Points:
1. Imported hydraulic system with dual pump and dual circuit, stable work performance, fast speed.
2. Guarantee for 2 yrs under normal use and maintenance
3. Imported hydraulic components, Japan made KPM main pump, Japan made KYB multi-circuit Valve, swing motor,Eaton travel motor, Japan made or South Korea made gasoline tank
4. On-line digital monitoring and control system
5. GPS satellite position and remote diagnose system(optional)
6. Cold&warm air conditioner supply under different kinds of weather conditions
7. Light and handy pilot operating system
8. Steel pedrail
Products Pictures:
Specification:
| Engine | Travel System |
| Model | Yanmar 4TNV98T | Travel motors | Eaton |
| Type | turbocharged; 4 stroke, direct injection, water cooled | Support roller quantities | 2×6 |
| Carrier roller quantities | 2×1 |
| No. of cylinder | 4 | Travel shoes | 2X39 |
| Bore and stroke | 98X110(mm) | Travel speed | 3.6/5.3(km/h) |
| Displacement | 3.319L; | Drawbar pulling force | 63.5kN |
| Power output | 54.3kw/2200rpm | Gradeability | 70%(350) |
| Max. torque | 277~301N.m/1650±100 rpm | Track shoes thickness | 8.5mm |
| Hydraulic System | Cab & Electrical System |
| Pump | KPM | Cab | Cab installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system |
| Type | variable double-piston pump |
| Max. discharge flow | 2X79.2(L/min) |
| Max. discharge pressure |
| Boom, arm and bucket | 27.5 MPa | Voltage | 12V |
| Travel circuit | 23.5 MPa | Batteries | 1X12V |
| Swing circuit | 23.5 MPa | Battery capacity | 120Ah |
| Control circuit | 3.9 MPa | Boom, Arm & Bucket |
| Pilot control pump | Gear type | Boom cylinder | Φ110xΦ75xS1000-L1480 |
| Main control valves | KYB, Japan | Arm cylinder | Φ100xΦ65xS870-L1335 |
| Oil cooler | Air cooled type | Bucket cylinder | Φ55xΦ90xS710-L1115 |
| Swing System | Refilling Capacity & lubrication |
| Swing motor | KYB | Fuel tank | 135 L |
| Swing motor type | Axial-piston motor | Cooling system | 18 L |
| Brake | Hydraulic oil released | Engine oil | 10.5 L |
| Parking brake | Hydraulic disc brake | Hydraulic oil tank | 92 L Tank Oil Level |
| Swing speed | 11 r/min | 128 L Hydraulic System |
| Bucket |
| Type | Backhoe bucket |
| Bucket capacity | 0.34m3 (SAE) |
| Bucket Capacity scope | 0.105-0.51m3 |
| Number of bucket teeth | 5 |
| Bucket width | 824 mm |
| Working Ranges |
|
| Boom length | 3905mm |
| A | Max. digging height | 7280mm |
| B | Max. dumping height | 4970mm |
| C | Max. digging depth | 4265mm |
| D | Max. vertical digging depth | 3200mm |
| F | Max. digging distance | 6800mm |
| G | Max. digging reach at ground level | 6665mm |
| H | Min swing radius of work equipment | 2160mm |
| Digging Force (ISO6015) |
| Arm length | 1750mm |
| A | Bucket digging force | 60.8 KN |
| B | Arm digging force | 47.1 KN |
| Overall Dimensions |
| A | Overall length | 6470mm | I | Track grounding length | 2200mm |
| B | Ground contact length | 3400mm | J | Track length | 2785mm |
| C | Overall height(to top of boom) | 2545mm | K | Track gauge | 1800mm |
| D | Overall width | 2250mm | L | Track width | 2250mm |
| E | Overall height(to top of cab) | 2600mm | M | Track Shoe width | 450mm |
| F | Counter weight ground clearance | 820mm | O | Counter weight height | 1785mm |
| G | Min Ground clearance | 403mm | P | Revolving frame width | 2195mm |
| H | Tail swing radius | 1870mm | Q | Distance from swing center to tail | 1870mm |
|
| Operating Weight and Ground Pressure |
| Operating weight includes basic machine; |
| Operating weight | 8080 Kg |
| Ground pressure | 39 KPa |
>>
