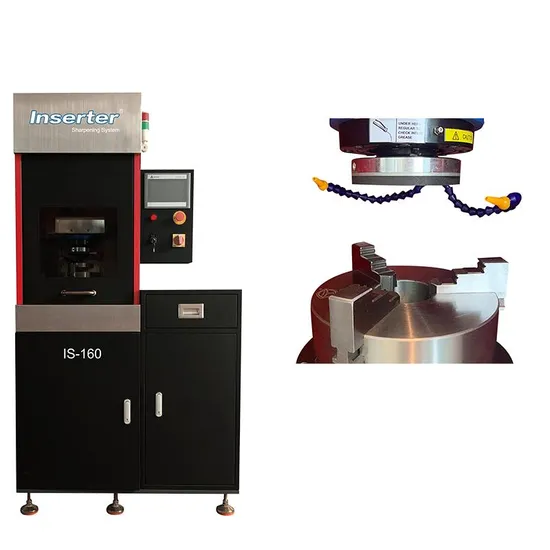

Dual-Stage Filtering Process Features Store Multiple Programs Punch Die Grinder

Product Description

Main Feature:
01. Automatic sharpening(Automatic tool setting, automatic removal).
02. PLC control, automatically complete the grinding process of rough grinding, fine grinding, polishing, etc.
03. Grinding accuracy: flatness±0.01MM.
04. The upper mold of AMADA 85 series AB station only needs to remove the pipe, and then the chuck can be installed for sharpening.
05. Automatic lubrication system.
06. Automatic cooling system(Prevent tool grinding and annealing).
07. Automatic liquid level detection system(Automatically alarm and stop when the coolant is lacking to prevent tool grinding and annealing).
08. Automatic filtration system(Filter cotton can be washed and reused).
09. Safety door protection and alarm function.
10. Grinding overload protection system.
11. Spindle upper limit alarm function.
12. Emergency stop alarm function.
13. Interrupt return function.
14. Exhause system helps trap remaining swarf.
Parameter:

Name	IS-160
Power of Main Motor	2.2KW, 2840 RPM
Motor of Rotating Table	0.100KW, 1440 RPM
Servo Motor	0.75KW
Cooling Motor	0.045KW
Maximum Grinding Diameter	160mm
Maximum Grinding Stroke	200mm
The Diameter of Grinding Wheel	135mm
Minimum step	0.01mm
Measurement of machine(L x W x H)	820X1020X1850mm
Weight of Machine	650KG

FAQ
1.How many models of grinding machine are there?
A: We have 3 models. RG-160;WG-150;IS-160
2.Which brands of molds are suitable for?
A: Suitable for Amada,Murata and Trumph.
3.How can I choose the right fixture?
A: As each brand has different mold sizes, you can contact us.

---
