Milling Machine for Metal Turret Milling Machine for Various Operations Machines Milling M250

Product Description

Product Description

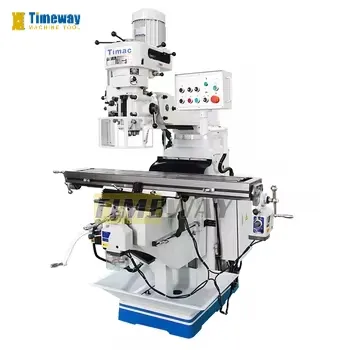

Turret Milling Machine
1 These robust and stable universal milling machines are ideal for drilling and milling simple to difficult workpieces in single part production, repair shop, training etc.
2 Base and column integrated casting, to gain better verticality and stability.
3 The bed, knee, table guide way and table surface are high-frequency quenched and precision polished, with hardness ≥HRC45.
4 The guide way on saddle is lined with TF wearable material, which make machine accuracy stability.
5 T-slots not extend to the end of table, which makes is with high rigidity and long using life; Both sides of the central T-slot was precision polished with high linear and orientation accuracy.
6 Worktable features large clamping area, and expand the worktable size for customers to choose.

SPECIFICATION		UNIT	M250	M320
Table size		mm	254x1270/254x1370	254x1270/254x1370
Longitudinal travel(X)		mm	820/920	920/1000
Cross travel(Y)		mm	410	400
Vertical travel(Z)		mm	400	400
T-slot(No. /width)		mm	3/16	3/16
Ram travel		mm	470	470
Distance from spindle to table		mm	0-400	0-400
Spindle taper		-	R8(Optional: ISO30/ISO40)	R8(Optional: ISO30/ISO40)
Spindle quill travel		mm	127	127
Spindle speed		rpm	16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200)
Spindle quill automatic feed		mm/r	0.038/0.076/0.152	0.038/0.076/0.152
Main motor power		kw	2.2	2.2
Mill head swivel angle		°	±90°	±90°
Mill head tilting angle		°	±45°	±45°
Dimension of package	One	mm	1516x1550x2080	1520x1550x2080
	Two	mm	1650x1790x2170	1650x1800x2170
	Three	mm	1650x2285x2235	-
Gross weight(One)		kg	1320	1300

X/Y/Z-axis guide type:
M250: double dovetail guideway/rectangular guideway/rectangular guideway
M320: double dovetail guideway/double dovetail guideway/double dovetail guideway

STANDARD ACCESSORIES: Setp Pulley Mill Head; Draw Bar; Working Lamp; Oil Pump; Coolant Pump; Chip Collecting Tray; Electric Cabinet; Toolbox And Tools

OPTIONAL ACCESSORIES: Variable Speed Mill Head; Inverter Mill Head; Air Draw Bar; Slotting Head; DRO; Gear Box Power Feed; Power Feed; Vise; 8pcs/set Collet Chuck; 58pcs/set Clamping Kit; Universal Dividing Head; H/V rotary table; Tilting Rotary Table; Spindle Guard; Hung Up Panel Bracket; Luxury Panel Bracket; Luxury AI-alloy Panel Bracket; Table Guard; Luxury Table Guard; Quill Feed Ruler; Table Up-down Motor; Auto. Oil Pump; Plastic Splash Guard

Features:
1 For different model machines, mill head with standard spindle 16speed step pulley mill head driven 3HP/5HP motor, spindle diameter up to be100mm (only for 5HP motor).
2 All milling machines are also available with optional stepless mill head or inverter mill head, steplessly adjustable spindle speed with mechanic spindle brake.
3 Universal mill head can be turned by ram on the column, tilted ±45° front to rear, swivelled ±90° left to right; but user can choose fixed structure with no tilted ±45° for cutting intensity well.
4 X-axis adopts double dovetail guideways; Y-axis and Z-axis adopt double devotail guideways or rectangular guideways.
5 X/Y/Z-axis can optional equipped with electronic feeder for automatic feeds, Z-axis can also adopt high speed lifting motor for rapid lifting.
6 Spindle is chromium plated and features micrometer depth stop for quill automatic feeding cutting.
7 Standard lubrication system for all guideways; Powerful coolant device included in machine base.
8 Spindle guard, table guard, 2/3-axis digital readout, air draw bar, slotting head are optional. Detailed Photos

Clearly arranged hanging new panel, digital position readout is part of the optional accessories

Height adjustable spindle guard and micro switch

Mill head can be turned, tilted and swivelled making it extremely versatile.

One-stop Shopping
Please click on the picture to view the product category you are interested in

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
