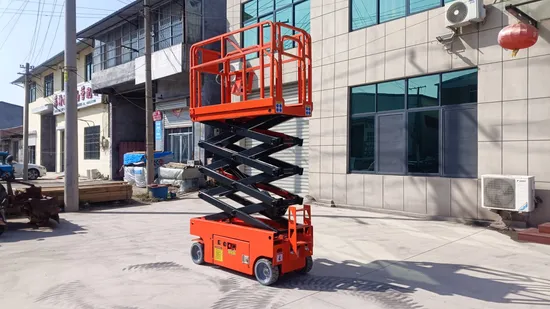

Superior Quality Electric Motor Self Propelled Stationary Scissor Lift Platform

Product Description

Product Parameters

Model	HTLP0.3-6
Safe working load	500 KG
Safe working load of extension	113 KG
Max.number of people	2
Max.working height	8 m
Max.platform height	6 m
Overall length	2600 mm
Overall width	1170 mm
Overall height(fence not folded)	2520 mm
Overall height(fence folding)	1700 mm
Working platform size(L*W)	2400 mm*1100 mm
Platform extension size	0.9 m
Min.ground clearance(retracted)	0.1 m
Min. Ground clearance(lifting)	0.019 m
Wheelbase	1.89 m
Min.turning radius(inner wheel)	0
Min.turning radius(outer wheel)	2.2 m
Lifting motor/drive motor	24 v/4.0 kw
Machine travel speed(stowed)	3.5 km/h
Machine travel speed(lifting state)	0.8 km/h
Up/down speed	80/90 sec
Battery	6 V/230 ah
Charger	24 V/25 A
Max.Climb capacity	25 degree
Max. allowable working angle(indoor/outdoor)	2° /3°
Type	381*127
Weight of whole machine	2400 kg

Product Description

FAQ

FAQ
Q:Whether are you a factory?
A:YEAH, We are LIFTING PLATFORM factory, Located in Jining,shandong,Province
Q:As First time shopping online from China, how about the operation?
A:No worry, we have over 20 years export experiences to all over the world, we have the professional support, we would introduce all clear for you happy shopping.Order-production-shipment-delivery
Q:How about the after services?
A:our products one year warranty,We have professional Technical and after-services Team, when we receive the clients issue feedbacks,we would deal the issue and offer the professional feedbacks at first time and to check the issue reason and offer the right support or Free spare parts;
Q:How to begin the shopping?
A:Please send your enquiry or message here, then we will make the final offer and invoice for you final checking then finish the shopping
Q:How about the payment term?How to pay?
A:We support 100% In advance; or deposit in advance,balance before the shipment;
We accept TT(Wire transfer), online transfer, Credit card, VISA, Paypal, apple pay,..L/C At sight....

---
