Automatic Grinding Machine 1500mm Knife Machine

Product Description

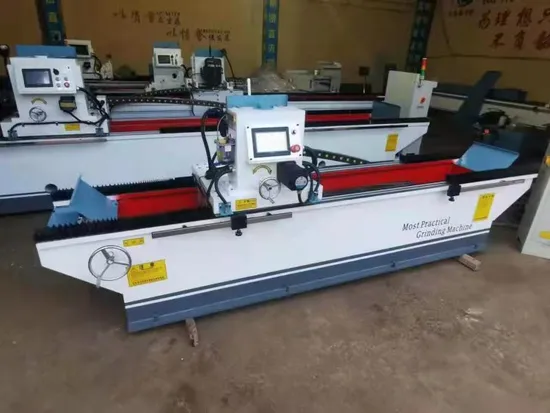

Automatic Grinding Machine 1500mm Knife machine
Product Description

1.This machine mainly grinds various long knives, such as veneer peeling machine knives, Granulator knife, paper cutters, shearing blades, slicing knives, etc.
2. Max Working length is 1500-7000mm.3. The body is designed as a gantry body, with high-quality steel welds, stress relief to eliminate internal stress. The machine body has high strength and good rigidity. There is no contraction in the center of the main body. The steel thickness is 10 or 12 mm.
4. The grinding head adopts a special motor. The axial clearance can be adjusted, the transmission is stable, the life is long, and the precision is high. The vertical movement of the grinding head adopts a ball screw to ensure accuracy.
5. The worktable adopts electromagnetic chuck. And it is very convenient to clamp the knife. It is easy to adjust the angle of the worktable through the worm gear.
6. The guide rail adopts a linear guide rail to ensure the smooth horizontal movement of the grinding head. The linear guide uses TAIWAN HIWIN
7. This machine uses an inverter. The horizontal and vertical speed of the grinding head can be easily adjusted.
8. The working accuracy of the machine is 0.01mm
Product Parameters

Model	GTMD1400	GTMD2800	GTMD2000
Max. grinding length(mm)	1500	2800	2000
Tilting range of working table	90	90	90
Grinding head motor power(kw)	4	4	4
Overall dimensions(mm)	3250*1200*1000	4500*1200*1100	4000*1200*1100
Weight(kg)	2000	2400	2200
Knife grinding method	Electromagnetic	Electromagnetic	Electromagnetic
Grinding Accuracy(mm)	0.01	0.01	0.01

Detailed Photos

Packaging & Shipping
Company Profile
WHO WE ARE
GTCO Machinery company is located in LINYI,SHANDONG ,CHINA--- a commercial and logistics city.
After more than 20 years' continuous innovation and development , Machinery has become an outstanding enterprise along with strong power , advanced technology and excellent quality Products are sold nationwide , exported to Asia , Europe , Africa and Oceania... etc .
WHAT WE DO
We have strong technical strength, talented people, and constantly introduces various automation and semi-automatic products. Now the national key promotion panel automation transformation production line, plywood production line, veneer machinery .automatic edge cut machine ,veneer peeling production line, veneer dryer, automatic veneer cutting machine, hot press, cold press, lifting platform, automatic putty- scraping machine and glue spreader etc.
2020 years ,we join in the new design and construction machine - stone crusher ,the main product have PE Jaw Crusher, PF Impact crusher , CS Cone crusher Feeder and screen Mobile crusher. etc.
We always right here waiting for service to you !
Welcome to visit us.
WHY CHOOSE US
1.Customized equipment, especially of unusual size, press, etc.
2.High quality and technical support
3.So rich international-trade experience for machinery.
4. 7*24hour on line service.

Our Service
pre-sale service:
1) Listen to customer needs
2) Provide free preliminary machine design plan and flow chart,choose and supply the most reasonable configuration equipment;
3) Support remote meetings and visit factory remotely;
4)Offer the professional advice to customer to confirm the final selection
5) Support site visits to factory;
In-sale service
1) All equipment is qualified for installation and commissioning before leaving the factory; supports remote video quality inspection;
2) The disassembly and packaging process of all machines before leaving the factory, providing photos, videos, and annotations;
3) Online or offline free training of buyers' operators (China)
4) Assist buyers to install and debug equipment (overseas)
After-sales service
1) 7*24 hours online service; remote real-time video resolution;
2) During the first installation and commissioning process, problems encountered during normal operation should be solved in time;
3) Periodic process inspection and use effect, and timely suggestions for machine maintenance;
4) Lifetime free technical guidance
5) Update the latest industry information in a timely manner.
