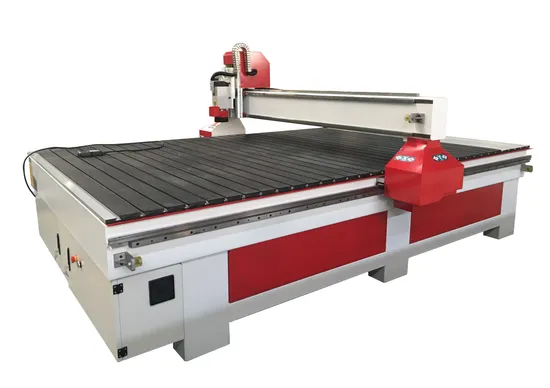

High Quality CNC Engraving Router Machine

Product Description

High quality CNC engraving router machine;
Configurations;
Technical features:
1.Adopted Linear Type Auto Tool Changer with 8 tools magazine, operating speed up to 50000mm/min.
2.All machine parts adopted top quality from all over the world,such as Italy Air cooled spindle,Taiwan SYNTEC Control System,Japan Servo Motor and driver ,to make sure machine high performance and durable operating.
3.6 Zones Vacuum table separately control ,dust collect system keep the machine clean.
4.It is widely used for Furniture Industry/ Decoration Industry/ Musical Instrument Industry/ Mould Industry/Craft Industry/ Advertising Industry and so on.
Technical Specifications:

Items		Parameters
Working area(mm)	X	1300
	Y	2500
	Z	200
Table Structure	Table Surface	T-slot table
Transmission system	X Y	Gear Racks
	Z	Ballscrew
Lead rail system	X Y Z	Linear square guide rails,HIWIN
Spindle	Power	4.5kw
	Rotating Speed	0-24000RPM
	Cooling Type	water-cooling
	Origin	China[OPTION:HSD 4.5KW,AIR COOLING SPINDLE/4 .5kw water cooling spindle]
	Collet diameter	3/4/6/12.7mm
About drivesystems	X Y Z	Panasonic,750W SERVO [option :YASKAWA SERVO ]
Control System		DSP (USB) [OPTION:ORIGNAL NC studio]
Built-in memorizer		128 M
Data reading mode		line by line
Compatible file formats		G code ; *.u00 ; *.mmg ; *.plt .
Software		Ucancam V9
Working Voltage		AC380V 50Hz
Table size		1480×3000mm
Precision		0.005mm
Max engraving speed		greater than 35m/min
Work-holding devices		vacuum table
Interface type		USB
Power(not include the spindle)		1840W
Cutting thickness of material		Depends on the materials
Warranty guarantee		One-year after-sale services

Samples:
Company introduction:
Jinan zhongke CNC equipment is located in one of the Chinese CNC router Production base ,jinan city. Since foundation in 2011 ,we have been researching And developing CNC router products in advertising working and mould processing And have manufacturer in CNC router equipment we cansupply diversified machines. Laser marking machine ,CNC router such as mechanical engraving industrial automation Equipment ,meanwhile ,we can also supply industrial automation solutions according to your special needs .Our machine with CE securing certificated are exported Asia ,Middle East ,North America .And we are trying to cooperate with people all over the world now .Our mangers have more than ten years experience ,I am charge of quality of the machine and
after sales service ,we willing to cooperating with you based to mutual benefits based on brilliant
future
FAQ:
Q1: how can I get suitable machine?
A: First-please tell us what material will be engraved or cutted?
Second-please tell us what is your max working area.
Third-please tell us what kind of product do you want to get.
Those three answers will help us choice suitable CNC router for you.
Q2: what is your delivery time?
A: it depends on what kind CNC router you order? But for commom CNC router
Our production time is 15 working days.
Q3: do you have operation manual for machine?
A: surely we have, there have how to intall and operation machine, how
to maintain machine and what place need to be notice during using
our machine, we will sent CNC router manual you with our CNC router machine.
Q4: this is the first time I use this kind of machine, is it easy to operate?
A: yes, we will send you manual and guide video in English. It can tech you
How to operate it, we can help you by phone or WhatApp.

---
