| US$1,850.00-1,950.00 | 1 Set (MOQ) |

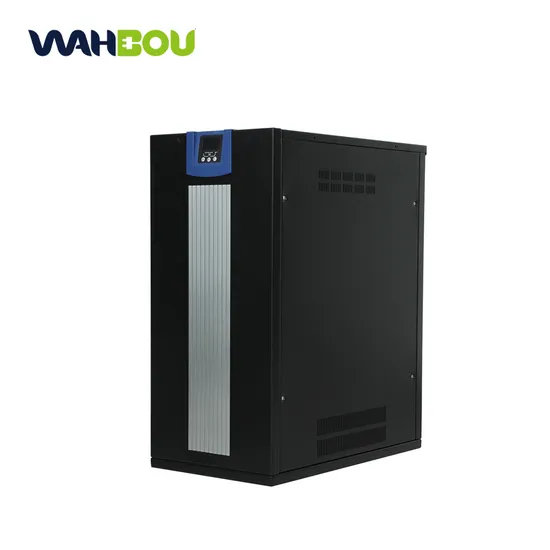

| Model | TD31 10KVA | TD31 15KVA | TD31 20KVA | TD31 30KVA | TD31 40KVA | |
| Rated Power | 10kVA/8kW | 15kVA/12kW | 20kVA/16kW | 30kVA/24kW | 40kVA/32kW | |
| Input | Rated Voltage and Range | 380Vac ±25% | ||||
| Input Form | 3P4W+G | |||||
| Frequency Range | 40Hz-70Hz (settable) | |||||
| Bypass Input | Rated Voltage and Range | 220Vac±25% | ||||
| Input Mode | 1P2W+G | |||||
| Output | Rated Voltage | 220Vac | ||||
| Output Mode | 1P2W+G | |||||
| Static Voltage Accuracy | ±2% | |||||
| Dynamic Voltage Transient | ≤9% | |||||
| Distortion of output voltage waveform | ≤3%(liner),≤8%(non-liner) | |||||
| Power Factor | 0.8 | |||||
| Output Frequency | 50Hz/60Hz | |||||
| Output Overload | 105%±5%≤ Load: Overload warning; 105%±5%<Load≤125%±5%: Convert to bypass output after 2 mins; 125%±5%<Load≤150%±5%: Convert to bypass output after 30s; Load>150%±5%: Convert to bypass output after 500ms. | |||||
| Battery | Rated Voltage | 192Vdc | 384Vdc | |||
| Environment | Operating Temperature | 0ºC-40ºC | ||||
| Operating Humidity | 20%-95% (non-condensing) | |||||
| Dimension (LxWxH) mm | 560x260x717 | 655x370x900 | 830x455x1055 | 830x515x1135 | ||
| Weight | 79.5kg | 122kg | 195kg | 210kg | 285kg | |
