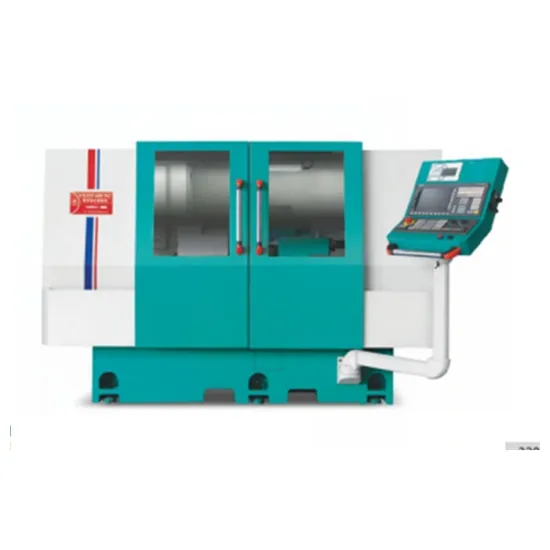

CNC High Precision PLC Cylindrical Grinder Machine

Product Description

1 ,Leading technology - advanced grinding concept
GP32 series of high precision camshaft grinding machine is the best of today's grinding machine products, both in design concept and manufacturing technology.
2 ,Stable and reliable - super rigid structure excellent precision performance
The machine has been tested in the most rigorous environment and conditions, with outstanding accuracy retention, suitable for single piece to mass production requirements, in the shape grinding and non-circular grinding industry.
3 ,Outstanding performance - for special-shaped parts processing excellent performance
High precision, high rigidity and high efficiency are the basic characteristics of this grinder, which achieves the perfect combination of performance and efficiency. Due to the excellent performance of machine tools, as well as excellent flexible design, can be widely used in aviation, medical, hydraulic, mold, robot reducer core parts, automotive parts and other industries.
4 ,Easy to use - easy to use operating system
By manufacturer and LYNUC rhenium sodium G developed the latest generation of user-friendly graphical programming software has a simple and fast setting and intuitive user interface, do not need the operator input complex G code and subroutine, easy to learn the operation, let the programming and setting more quickly. The user experience and operation experience are extraordinary.

NO	Items	Parameters
1	Center height/maximum grinding diameter	210/320mm
2	Distance between the two centers supports	600mm
3	:Grinding wheel diameter:	Standard φ450mm, special grinding wheel φ510 (optional
4	X axis (linear motor) stroke/fast move:	260mm/ 1.5m/s
5	X axis (linear motor) thrust	1660-3060
6	Z-axis (servo motor) stroke/ fast move	600mm/8m/min
7	X axis /Z axis mini resolution	0.0001mm
8	Direct-drive workpiece support spindle	Guangzhou Haozhi/permanent magnet synchronous motor/Renishaw
9	Direct drive workpiece head frame spindle (C axis)	maximum speed/repeated positioning accuracy: 600rpm/± 2arcsec
10	Direct drive workpiece head frame spindle (C-axis) rated output torque/shaft end taper hole runout:	47.8Nm/0.001mm
11	Grinding wheel spindle brand/type/Linear speed	LYNUC

---
