Automatic 8FT Adjustable Speed Plywood Veneer Spindless Peeling Machine with Clipper

Product Description

Product Description 8FT Plywood Veneer High Speed CNC Spindleless Rotary Peeling Machine with Clipper

1. Product Features:
1.The peeling Speed can be changed automatically according the Program setting.
2.Automatic knife cutter peeling angle adjustment,the veneer surface finish is very smooth, increase the quality of the veneer.
3.CNC knife peeling angle control,the veneer thickness can be changed by touch screen.
4.The after angle of knife cutter are designed to change with the log diameter.
5.By using ball screw.
6.The worktable movement use Precision linear guide rail.
7.Electric parts use Schneider.
8. The machine has Automatic Hydraulic Knife Change system, Japan Real Mitsubishi Servo System,Siemens Motor. And the machine is Casted Iron Body.
2. Parameters:

Max. working length	2600mm
Max.Working diameter	500mm
Max. working speed	30-110m/min
Veneer thickness	0.3~3mm
Double rollers motor power	11kw x 2sets
Single roller motor power	7.5kw x 2sets
Screw Feeding motor power	15kw
Rotary clipper motor power	3.7kw
Rubber belt conveyor motor	2.2kw
Machine weight	9500kgs

3. More Pictures:
4. Service:

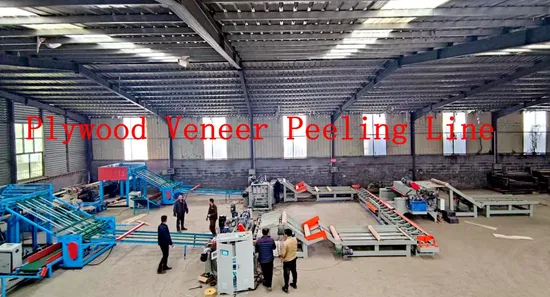

1. We supply full core/face veneer production line according to customer's demand, fully/semi-automatic avaliable.
2. One year guarantee of machines, and lifetime after-sales service and information consult.
3. Our technical people have much experience in installation, debugging, run testing all kinds of machine in different countries.
4. Our company attends most of the international exhibitions every year, and will visit the local customers to collect customer's feedback and suggestions on our machines, then we can update our machines continuously.

---
