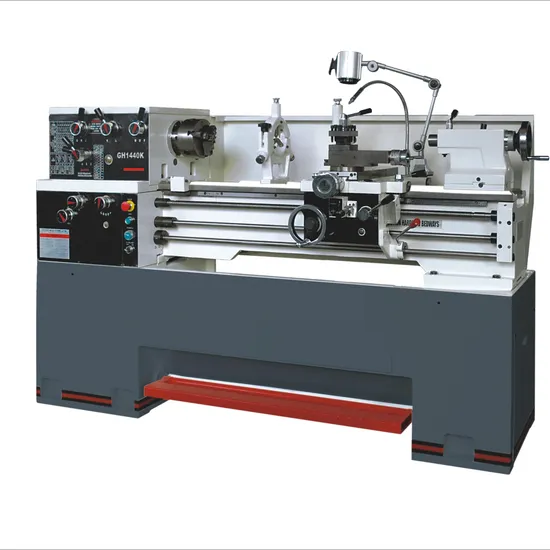

China Gh1440-K Spindle Bore Metal Manual Horizontal Engine Lathe Machine with CE

Product Description

Product Description
The guide ways and all gears in the head stock are hardened are precision ground.
Longitudinal feed : 0.043-0.653mm/r
Cross feed:0.024-0.359mm/r,
spindle bore: Ф40mm ,40-1800rpm.
Configuration

Workholding:3-jaw
chuckФ160mm and 4-jaw
chuckФ200mm ,MT-5spindle nose.

Turret:4-station tool post

Manual Tailstock, MT.3 manual quill

Manual Steady rest and follow rest; manual positioning and gripper adjustment;

12-month limited warranty covering defects in material and workmanship.An additional 1-year extended

MODELS	GH1440-K
CAPACITY
Max.swing over bed	Ф356mm (14")
Max.swing over carriage	Ф210mm (8-1/5")
Max. swing over gap	Ф508mm (20")
Width of bed	260mm (10-1/5")
Distance between centers	1000(40")
SPINDLE
Spindle bore	Ф40mm (1-1/2")
Taper bore of spindle	M.T.NO.5
Steps of spindle speed	12
Range of spindle speed	40~1800rpm
Spindle nose	D4
FEED
Range of longitudinal feeds	0.043-0.653 (0.0012″~0.0294″)
Range of cross feeds	0.024-0.359 (0.0004″~0.0103″)
THREADING
Metric threads	0.4-7mm/ 37kinds
	0.45-7.5mm/ 23kinds
Whit-worth threads	4-56TPI/ 28kinds
	4-112TPI/ 40kinds
LEADSCREW
Diameter of leadscrew	Ф22mm (7/8")
Pitch threads of leadscrew	4mm or 8TPI
TAILSTOCK
Travel of tailstock quill	120mm (4-3/4")
Diameter of tailstock quill	Ф45mm (1-25/32")
Taper bore of tailstock quill	M.T.NO.3
POWER
Power of main motor	2.4kw(3HP) 3Ph
Coolant pump motor power	0.04kw(0.055HP)
OTHERS
Dimension(L×W×H)	1900×710×1170mm
Net weight	1250kg (2750lbs)
Gross weight	1380kg (3040lbs)
