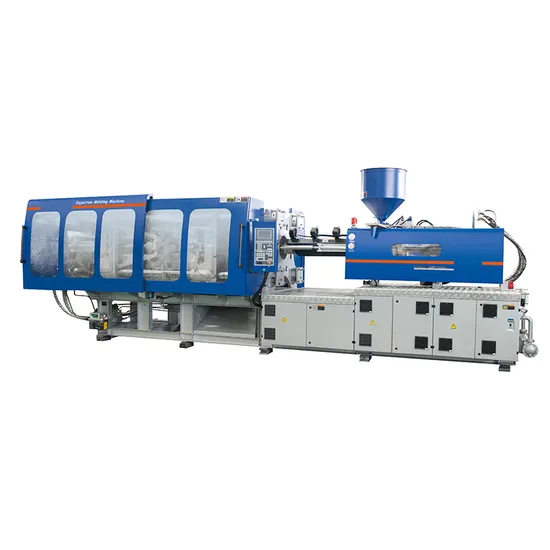

UV230 PVC Injection Molding Machine

Product Description

PVC IMM :
Cooling fan installed on barrel,Widened protective door.,Increased motor.
The main production of PVC material pipe fittings
Parameters:

PVC STYLE SPECIFICATION		UV/230
SCREW TYPE		A	B	C
Injection Unit
Screw diameter	mm	45	50	55
Screw L/D ratio	L/D	24.4	22	20
Shot volume(theoretical)	CM3	397	490	593
Injection weight(PVC)	g	506	624	755
Injection rate	g/s	190	235	284
Injection pressure	MPA	207	168	139
Screw speed	rpm	110
Clamping Unit
Clamping force	KN	2300
Open stroke	mm	475
Space between tie-bars(W*H)	mm	520*520
Max mould height	mm	560
Min mould height	mm	200
Ejector stroke	mm	150
Ejector force	KN	70
Others
Max pump pressure	MPA	16
Pump Motor power	KW	23
Heating power	KW	14.8
Numbers of heating area	Segment	3+1
Machine dimension(L*W*H)	M	5.75*1.58*2.28
Oil tank cubage	L	300
Machine weight	TON	7

Configuration List:

Name	Brand
Computer	KEBA(AUSTRIA) or EST
Servo Drive	INOVANCE(CHINA)
Servo Pump	SUNNY(USA) / SUMITOMO(JAPAN)
Servo Motor	PHASE(ITALY)
Electro-hydraulic Proportion valve	HNC (Taiwan)
Stroke transducer	NOVO or Miran(GERMANY)/GERFRAN(ITALY)
Breaker	Schneider (FRANCEN)/Siemens(GERMANY)
Contacts	Schneider (FRANCEN)/Siemens(GERMANY)
Switch	Schneider (FRANCEN)/Siemens(GERMANY)
Hydraulic Direction Valve	Vickers (USA) or Rexroth (GERMANY)
Plasticing Motor	DINAMIC(ITALY) or STF(ENGLAND)
Hydraulic Hose	MANULI(ITALY)/CONTINENTAI(GERMANY)
Plasticing speed sensor	OMRON
Sealing ring	HALITE or TREIIEBORG(UK or GERMANY)

---
