300m, 600m Water Well Camera, Underground Downhole Camera, Underwater Camera and Borehole Camea for Sale Borewell Water Level Checking Camera

Product Description

Downhole Camera, Underwater Camera, Deep Camera, Borehole Camera, Bore Well Camera, Water Well Camera, Underwater Well Camera
300m, 600m Water Well Camera, Underground Downhole Camera, Underwater Camera and Borehole Camea for Sale

Main Applications and Features
300m, 600m Water Well Camera, Downhole Camera, Underwater Camera and Borehole Camea for Sale
JKX-2 Drilling Full Hole Wall Imaging System adopts reflective axicon lens to take 360° hole wall images, image acquisition and processing by means of computer to form a continuous hole wall developed image. The hole wall image are developed following the order NESWN. The longitude connection of images are jointed as per the order of depth, thus the overall hole-wall image is fully understand at a glance.
Data Processing Function
· Browsing, real-time display of position and depth
· Marking of images and literal texts
· Making of interpretation lines on images
· For convolution rotation, see coregraph
· Calculate the inclination of stratum construction
· Measure the thickness of rock stratum and the width of cracks Technical Specifications
300m, 600m Water Well Camera, Downhole Camera, Underwater Camera and Borehole Camea for Sale
1Vp-p PAL TV Signal 75Ω Video Output 1Vp-p PAL TV Signal 75Ω Video Output Definition: 450TVL Viewing Angle: 360° Hole Wall Lighting: Built-in K3200° Trichromatic Lighting Ring Probe Diameter: φ70mm Adaptation Aperture: φ75~φ300mm Power Supply: AC220V±10% 50Hz Software Operating Environment: Win2000/XP Adapted Hole Depth: 0~3000m Clear Water Hole or Dry Hole Function :
300m, 600m Water Well Camera, Downhole Camera, Underwater Camera and Borehole Camea for Sale
1 To inspection the water leakaging of the well ,
2 To imaging the blockage of the well
3 To help the repair of the well
4 Provide broadcast quality video of the underwater world
back to the surface from up to within 1000m below,
5 This camea can be viewed in real time or recorded for later
vieweing

Feature:
300m, 600m Water Well Camera, Downhole Camera, Underwater Camera and Borehole Camea for Sale
1 Super high resolution color picture
2 Low light operation
3 Led underwater light
4 Stainless steel housing
5 watertightness cable
6 Ability to attach up to deep place and stand large pressure
of water
More Pictures:

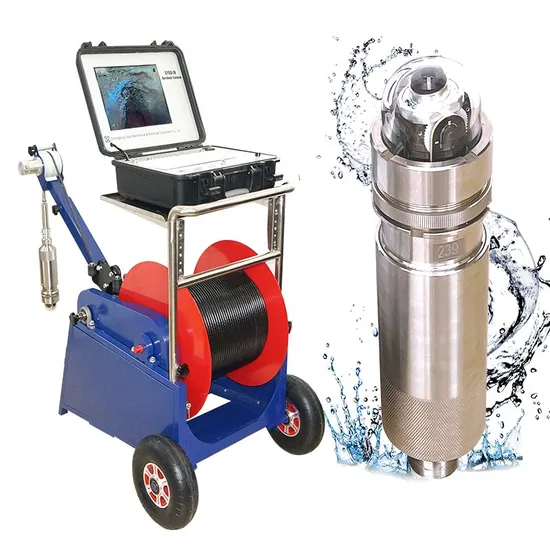

1. Ground Instrument
2. 360º Camera Probe: there are 11 LED lights
3. 1. Electrical winch with cable
300m, 600m Water Well Camera, Downhole Camera, Underwater Camera and Borehole Camea for Sale
Water Well Camera, Downhole Camera, Underwater Camera and Borehole Camea for Sale

---
