Basic Info.
Match Machine
Chemical Fiber Spinning Equipment
Processing Level
The General Processing
Mechanical Process
Professional Processing
Processing Trade
Processing with Material Supplied
Certification
CE, ISO9001: 2000
Transport Package
Foreign Trade Export Standard Packaging
Specification
3200mm*1000mm*1100mm
Production Capacity
500-800kg/H

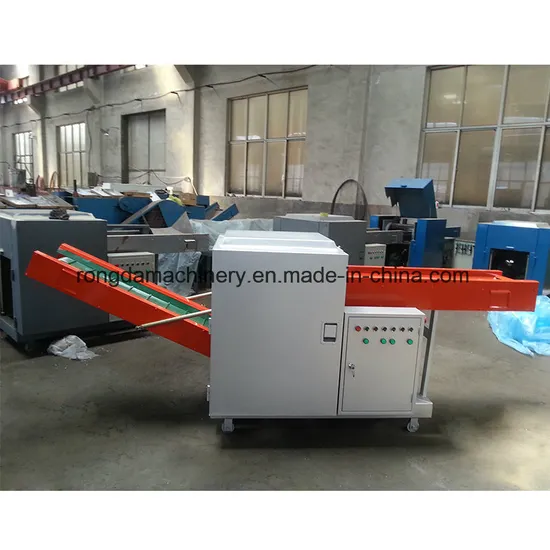

Product Description
Features
1. Uses the cutting between the blade roller and fixed blade to cut yarn, fabric etc. into small pieces.
2. Length is adjustable from 5 cm-20 cm .Speed can be adjustable according to customers' special requirement.
3. It can meet the requirement of best quality, high output, low cost and also has a feature of reasonable structure, easy operation and the safe production and so on.
TECHINICAL DESCRIPTION OF EQUIPMENTS
| NO. | ITEM | DESCRIPTION |
| 1 | Model | GM800C |
| 2 | Dimension of M/C | 3200L1000W1100H(mm) |
| 3 | Weight | 800kg |
| 4 | Total power | 5.5+1.5kw |
| 5 | Main motor | 3 phase AC power 50Hz |
| 6 | Protection | Main motor overload protection Open phase protection |
| 7 | Working width | 350mm/ Unadjustable |
| 8 | Number of Rotating blade | 4 |
| 9 | Number of Fixed blade | 2 |
| 10 | Bearing | High quality bearings |
| 11 | The connection method | Conveyor belt |
| 12 | Electrical components | Zhengtai |
| 13 | Capacity | 800KG/H |
| 14 | Note | CNC cutting equipment and machining center equipment will be used in the manufacture of the machine. All rotating shaft through dynamic balance test. |
Product Features:
1.The cutter adopts Cr12mov super hard alloy material, the vacuum quenching treatment, reaching 62 degrees above, adjustable use;
2.The main shaft of the tool holder adopts 40Cr shaft special material, high torque and strong toughness;
3.Widen the conveyor belt,1400mm long and 350mm wide;
4.Electrical control cabinet can operate in one hand,reversible switch;
5.Overload protector, the cutting range is 3-75mm.
Our Sercive:
1.We have After-sale department,every client can get a timely feedback when they have any trouble about our machine.
2.We have installation team,if you need,we will provide installation service.
3.Our equipment warranty period is 1 years,within this time,we will provide free maintenance.
4.If you have any other question or demand,please feel free to contact our businessmen,they will reply you within 8 hours.
>>
