| US$330.00-900.00 | 1 Piece (MOQ) |
| PC | |
| CPU | Intel® Core, i3-1115G4, Dual Core , Quad Threads, Base 1.7 GHz, Turbo 4.1 GHz, Fanless Other CPU Optional |
| Chipset | SOC |
| Memory | 1*SO-DIMM DDR4 3200MHz Max32GB |
| Hard Drive Capacity | 1 * M.2 (NGFF) Key-M Slot (PCIe x4 NVMe SSD, 2242/2280), 1 * Mini PCI-E Slot (mSATA, SATA3.0), 1 * SATA3.0 7P Connector (with 1 * SATA Power Header) |
| Graphics | Intel® Iris® Xe Graphics |
| Audio | Audio Codec 1 * Front Audio Header (Line-Out + MIC) 1 * Line-Out + MIC 2in1 3.5mm Jack (default CTIA, OMTP Standard SEL by res) 2 * Amplifier, 5-W (per channel) into an 8-Ω Loads |
| Network | Realtek GBE LAN Chip (RJ45, 10/100/1000 Mbps) |
| Wireless Network | WIFI, Bluetooth, 4G, GPS Optional |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| External I/O Ports | |
| USB | 2x IP67 USB2.0 |
| LAN | 1x IP67 RJ45 |
| COM | 1x IP67 RS232 |
| Power input | 1x IP67 9-36V DC |
| Other | 1x IP67 Power on/off button, 1x IP67 Breather valve , |
| LCD panel | |
| Panel size | 19" |
| Display active area | 376.32(W)x301.056(H) mm / 14.816x11.853 in |
| Resolution | 1280*1024 |
| Aspect ratio | 5:4 |
| Brightness (cd/m²) | 1000 nits sunlight readable |
| Brightness control | PWM software to adjust brightness |
| Contrast ratio | 900:1 |
| View angle | 85°/80°/80°/85° (R/L/U/D) |
| Support color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Surface Hardness | 3H |
| Surface treatment | Anti glare |
| Luminousness | ≥90% |
| Touch controller IC | EETI ETR400 |
| Available touch drivers | Windows, Linux, Android, Mac |
| Touch bonding | Optical bonding (Air bonding Optional) |
| Touch optional | 10 Points capacitive touch, IR touch, Non touch optional |
| Power Supply | |
| Working voltage | 12V DC (9-36V DC Optional) |
| Power consumption | 65W |
| Power adapter | AC 100 ~ 240V input and DC +12V@7.5A MAX output, 90W |

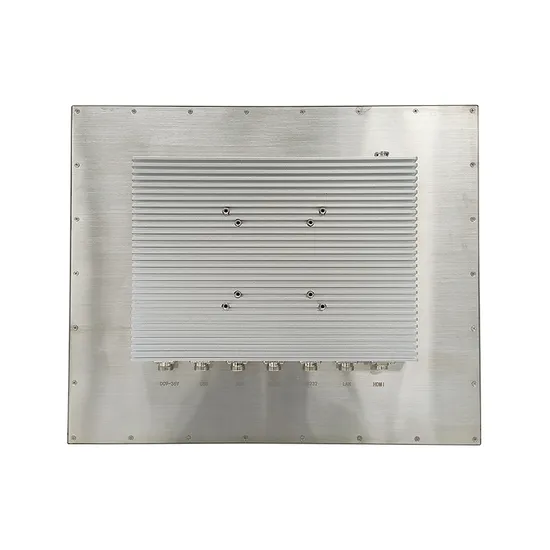

| Enclosure | |
| Material | Stainless Steel 304 |
| Finish | Wire drawing |
| Color | Silver |
| Mounting | VESA mount 75x75/100x100mm |
| IP rating | Full panel IP67 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage :-30 to 80°C |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 8.49kg |
| Product dimension | 453×378×65mm |
| Packing info | 1pc/ctn 66×47×18cm 12kg 2pcs/ctn 67×48×34cm 25kg |
| Accessories | Power adapter, Power plug, Waterproof LAN cable, Waterproof USB cable*2 |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
