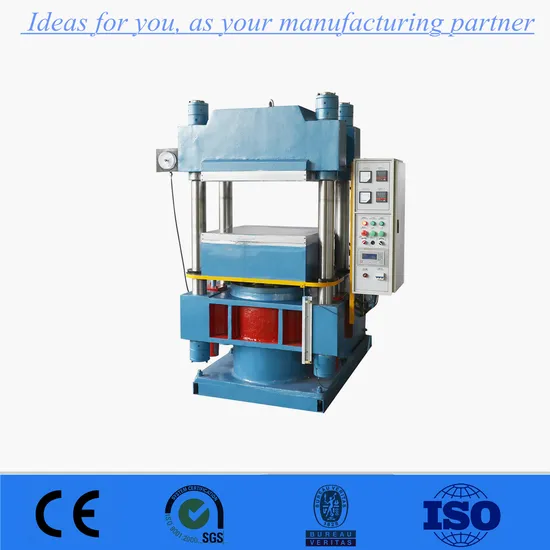

Hot Sale 50ton Automatic Vulcanizing Press/Rubber Curing Press Machine

Product Description

Factory direct sales Rubber Vulcanizing machine/Hydraulic press/EVA Vulcanizing machine


We have ISO9001:2008,SGS,CE standard and offer all kinds of certification according to customer's request:like CO,CIQ,SASO and so on.

1.Material of steel plate:


We use hight quality carbon steel Q-235(produce by Jigang Group Co.,Ltd which is a famous company) ,more thicker than other supplier,after shot blasting ,smooth, it is strong enough than common steel
2.Weldment of frame : world technique


Welded together as a whole part,Stewing fire treatment after weldment.



(Carbon dioxide gas shielded welding,alloyed welding wire).



submerged arc welding, VSR treatment after weldment.
3.Piston:

the material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable.

4.Heating way&precision temperature control:

Steam ,oil or Electric (We use high quality hot platen and heating pipe to keep heating stability and uniformity)

range of temperature:0-300 °C (can be adjustment if you need 400 °C ,we can do it )

Plate temperature tolerance: ±0.1°C (very precise)other factory just is ±3°C

Also we can produce the machine with water cooling system.

♥ 5.Hydraulic system: (PLC control)

the professional hydraulic components, stable and reliable and quality .Pressure sensor control system pressure and never off pressure.

We use OMRON,SIMENS CHNT , SCHNEIDER ect brand electric parts.
.There are more advanced technical information as our core patents,and not showed in the description,please send email to us.

Parameters/version	XLB350*350*2	XLB400*400*2	XLB500*500*2	XLB600*600*2/4	XLB750*850*2	XLB1000*1000*2
Mould closing force	0.25	0.5	0.8	1.0	1.6	2.5
Hot plate spacing	125	125	125	125	125	200
Hot plate layer	2	2	2	2/4	2	2
Plunger stroke	250	250	250	250/500	250	400
Heating way	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/Stream	Electricity/stream
Main motor power	2.2	2.2	2.2	2.2	3	5.5
The thermal power	2.4kw/board	3kw/board	3kw/board	7.5kw/board	9kw/board	10.8kw/board
Size(l*w*h)	1450*400*1350	1600*400*1440	1450*690*1818	1880*780*1660	2100*1010*1900	2400*960*2500
Weight(kg)	1200	1500	1700	2500/3100	3560/4300	8300

1.Application
It is mainly in use of vulcanizing various kinds of rubber pattern products.
1) The body use frame type, mainly consist of top crossing, plate, table, piston, hydraulic cylinder and frame. We put asbestos board between plate and top crossing, table, for its good heat insulation. Use polyurethane material sealing ring between piston and hydraulic cylinder with good sealing property. The piston material is chilled cast iron, hydraulic cylinder material is ductile cast iron, weldment between top and bottom crossing.
2) Put holder and oil cylinder at the side of plate, push-off and reseting moulds are finished by oil cylinder moving when using. There is not ejecting holder in manual ejecting mould structure ,but still convenient when using.
3) Hydraulic system is consist of unipump, operating valve and control system.
4) Electric system is consist of oil pump motor and vulcanizing timing. When working pressure reach 22.1 mpa, electro connecting pressure gauge control, time relay on the faceplate is used for setting vulcanizing time. When reach the setting time, it will warn automatically, push TA button can remove warning.

---
