High Quality Big Bag/Ton Bag/Jumbo Bag Breaking Machine

Product Description

Product Description
The ton bag feeding station is a very practical equipment that plays an important role in modern production processes. With the continuous upgrading and improvement of technology, the performance of the ton bag feeding station will gradually be improved, and more fields will be invested in the use of the ton bag feeding station, injecting more intelligence and convenience into the production process. For enterprises, continuously introducing new technologies and improving production efficiency is an eternal topic, and the ton bag feeding station is a new type of equipment worth promoting and using

Specification of ton package	1000 × 1000 × 1200
Operating environment	-15 °~50 °
Operating pressure	normal pressure
Air source pressure	0.4~0.6MPa
Applicable materials	powder, and particle materials with good flowability and average flowability
Moisture content	≤ 3%

Main Structure
Characteristic description

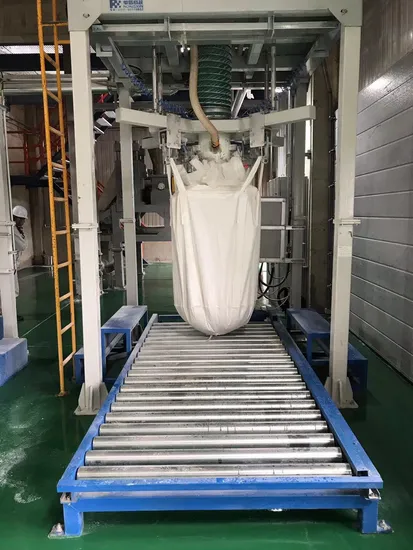

The pneumatic clamping mechanism is a double circular ring bag clamping structure. When the large bag is lifted above the bag clamping device, press the button on the controller, and the cylinder piston rod extends to lift the pressure plate. At this time, manually pass the mouth of the ton bag through the center hole of the pressure plate and insert it between the inner and outer rings. Press the button on the controller again to retract the cylinder piston rod, and the pressure plate is lowered to fit with the upper plane of the inner and outer rings. At this time, a closed material channel is formed between the bag mouth and the inner ring, and the bag mouth tie rope is removed, The material can enter the lower hopper, and the combined action of the pressure plate and sealing ring can effectively prevent dust leakage.
Appliction Industries
In the food, pharmaceutical, chemical, and metallurgical industries, unpacking and unloading of dry powder and granular materials such as plastic resins and food additives in large bags.
