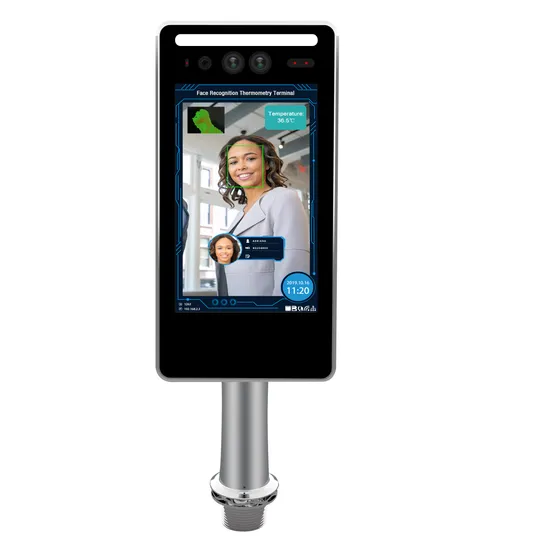

Non Contact Body Temperature Check and Facial Recognition Kiosk
-Integration of face capture, comparison function, infrared temperature measurement function
-Support the output of real-time video stream to other device, one complete face capture, recognition, infrared temperature detection function
-Temperature anomaly alarm, non-contact forehead temperature detection within one second, detection distance 25-45cm, temperature error range ±0.3°C, abnormal temperature linkage acousto-optic alarm
-Support living face detection, effective prevention of photos and video spoofing
-Face database can reach 10,000pcs, flexible face template import, support single, batch image file import and real-time capture import
-Support face types of ordinary people, whitelist people, blacklist people, etc.
-Can be widely used in access control channels, wall-mounting attendance and other scenarios.
| Screen |
| Dimensions | 7- inch, full-angle IPS LCD screen |
| Resolution | 1280x720 |
| Camera |
| Type | Dual Camera Design |
| Sensor | 1/2.8" SONY starlight CMOS |
| Resolution | 1080P @ 30fps |
| Lens | 3.6mm*2 |
| Body temperature measurement |
| Measuring site | forehead |
| Temperature range | 34-42 ºC |
| Temperature measuring distance | 25-45cm |
| Temperature measurement accuracy | ± 0.3 ºC |
| Temperature measurement response | ≤ 1 s |
| Face recognition |
| Detection Type | Support lving face detection, effective prevention of print photos, phone photos and video spoofing |
| Face recognition distance | 0.3-1.3m, support detection target size filter adjustment |
| Recognize face size | Pupils distance ≥ 60 pixels; Face pixel ≥150 pixels |
| Face database capacity | Support built-in ≤ 10000 faces; support black/white list |
| Posture | Support side face filter, comparable within 20 degrees in vertical and 30 degrees in horizontal |
| Occlusion | Ordinary glasses and short sea retention have no effect on recognition. |
| Expression | Under normal circumstances, slight expressions do not affect recognition. |
| Response Speed | ≤ 1 s |
| Face exposure | Support |
| Local Storage | Support storage of 100,000 records, Face capture accuracy ≥99% |
| Recognition area | Full image recognition, support zone optional setting |
| Upload Method | TCP, FTP, HTTP, API function calling upload |
| Network Functions | |
| Network protocol | IPv4, TCP/IP, NTP, FTP, HTTP |
| Interface protocol | ONVIF, RTSP |
| Security Mode | Authorized username and password |
| Event linkage | TF card storage, FTP upload, alarm output linkage, Wiegand output linkage, voice broadcast |
| System Upgrade | Support remote upgrade |
| Other | / |
| Accessories |
| Supplementary light | IR light, LED white light |
| Identification Module | Support built-in IC card reader module optional |
| Support built-in ID card reader module optional |
| Speaker | Support voice broadcast after successful recognition, temperature alarm |
| Network Module | e |
| Interface |
| Network Interface | RJ45 10M/100M Network Adaptation |
| Alarm Input | 2CH |
| Alarm Output | 2CH |
| RS485 interface | Support |
| TF card slot | Supports up to 128G of local storage |
| USB | Support |
| Wiegand interface | Support Wiegand 26, 34, 66 protocols |
| Reset key | Support |
| Sim Card | Support |
| General |
| Operating Temperature | -20°C ~ 60°C |
| Working humidity | 0%-90% |
| Protection Level | / |
| Power Supply | DC12V |
| Power dissipation (maximum) | ≤ 12 W |
| Dimensions (mm) | 406mm(H)*120mm(W) |
| Installation Method | Wall installation / gateway installation / floor stand installation |
1. Wiegand interface
2. Alarm output 2
3. Import
4. Power input
5. Alarm output 1+RS485
6. Alarm input
7. USB
