TECHER 2 car body collision repair bench

Product Details

Product Description

Product Description

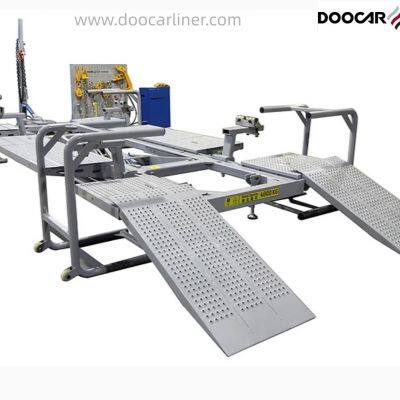

Techer 2 car body repair bench is a flexible collision repair system to repair both cosmetic sheet panel damage and structure frame alignment for small to medium sized cars, SUVs, pick-ups. It can also perform other repair and service operations in a single setup! The equipment combines scissor lift and straightening system, it is ideal equipment for car body shop.
Techer 2 bench benefits:
1.Universal Pinch Clamp: Simple and easy to used to pinch the sills of damaged vehicles.
2.Pneumatic cylinder: Help to open the mechanical safety lock effortlessly.
3.Supporting leg : Help to fix the correct position for easy draw aligner fixture.
4.Optional side ramps: For easier damaged vehicle drive on the bench.
5.Adjustable height: Minimum height of 120mm for most easy and simple drive on, the maximum lifting height is 1600mm.
6.Bench length available in: 3140mm/4260mm/5000mm
7.4 Tons lifting capacity
8. 10 Ton 360 degree power pullingergonomic design streamlines work processes and facilitates quicker progress
9. Compatible with Celette jigs
Specification

bench length	3140mm/4260mm/5000mm
bench width	940mm
bench height	120-1600mm
Hydraulic system working pressure	7000PSI
High hydraulic thrust of tower	100KN
pulling tower	360 degree
Power gas source pressure range	0.5-0.8MPa
Electric pump power	2.2KW
loading capacity	4000kg
weight	1600kg
