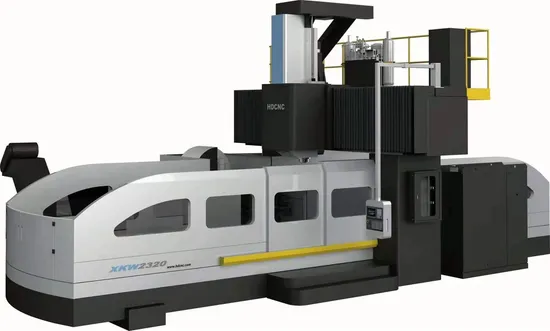

China Manufacturer Portalo C CNC/ Gantry Milling Machine Xkw2316*40

Product Description

1. Machine features
I.the machine adopts high rigid gantry frame structure,and the important parts are resin sand castings,and through two artificial aging treatment,has enough hyro-static rigidity and good precision retention.
II.All three axes of the machine adopt double nut pre-tightening ballscrew,and pre-strethching,driving rigidity is strong,the precision is stable and reliable.
III.The XY axes adopts heavy-duty linear guideway(ballscrew)structure,the Z axis adopts rectangular box way structure,and the Z axis is equipped with the diazo liquid balance cylinder,with small motion inertia and fast response speed.
IV. machine spindle adopts Taiwan high rigid spindle,long service life ,high reliability ,gear head driver or spindle motor direct drive structure.
2.Industry application
3.Machine parameter

Model		unit	XKW2316*20	XKW2316*30	XKW2316*40
processing capacity	gantry effective height	mm	1600
	X axis travel	mm	2000	3000	4000
	Y axis travel	mm	1900
	Z axis travel	mm	800
	spindle taper to table surface	mm	190-990
table	table size(W*L)	mm	1300*2000	1300*3000	1300*4000
	table loading weight	T	4	5	6
	T-slot(W*distance)	mm	7-22-170
spindle	ram type/dimension	mm	T type guideway
	Max speed	rpm	6000
	motor power	kw	15/18.5
	driving type		spindle direct connection/gear type head
	taper		BT50
ATC	capacity	T	24/32/40/60
	max. tool diameter	mm	Φ125/Φ230
	max tool length	mm	300
	Max tool weight	kg	18
others	total power capacity	KVA	50
	machine weight	T	19	23	26
	machine size	cm	650*550*450	850*550*450	1050*550*450
	CNC system		Siemens 828D/Fanuc 0I MF

4.List of key components
1.Spindle unit
2.XYZ axis ballscrew
3.XYZ bearing for ballscrew
4.spindle servo motor and driver
5.XYZ axis roller linear guideway
6.XY Z axis servo motor and driver
7.CNC system
5.Optional accessories
different type of milling head
ATC
6.Company honors
7.International exhibition

---
